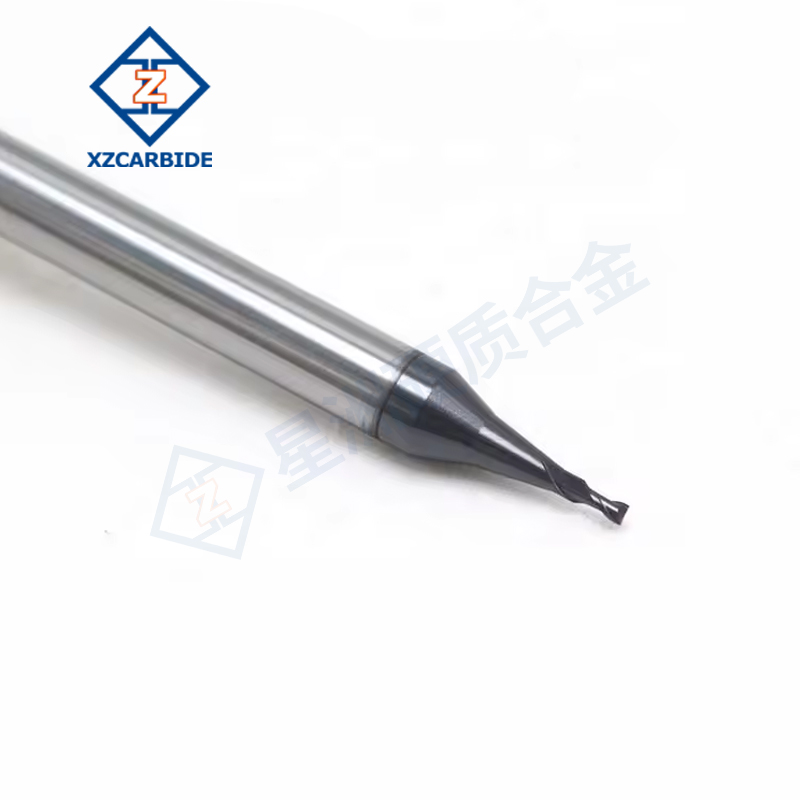

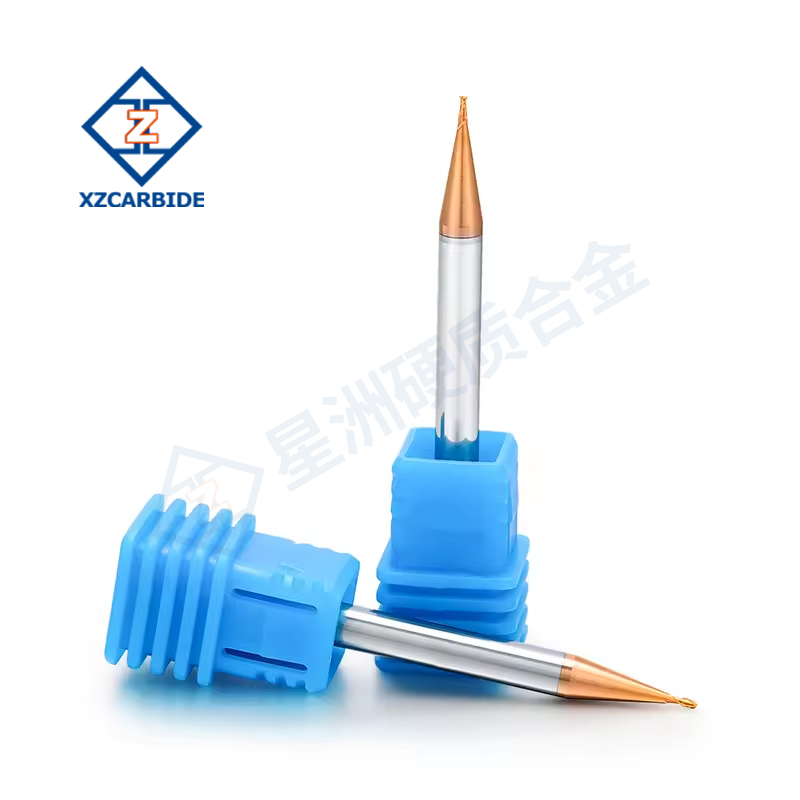

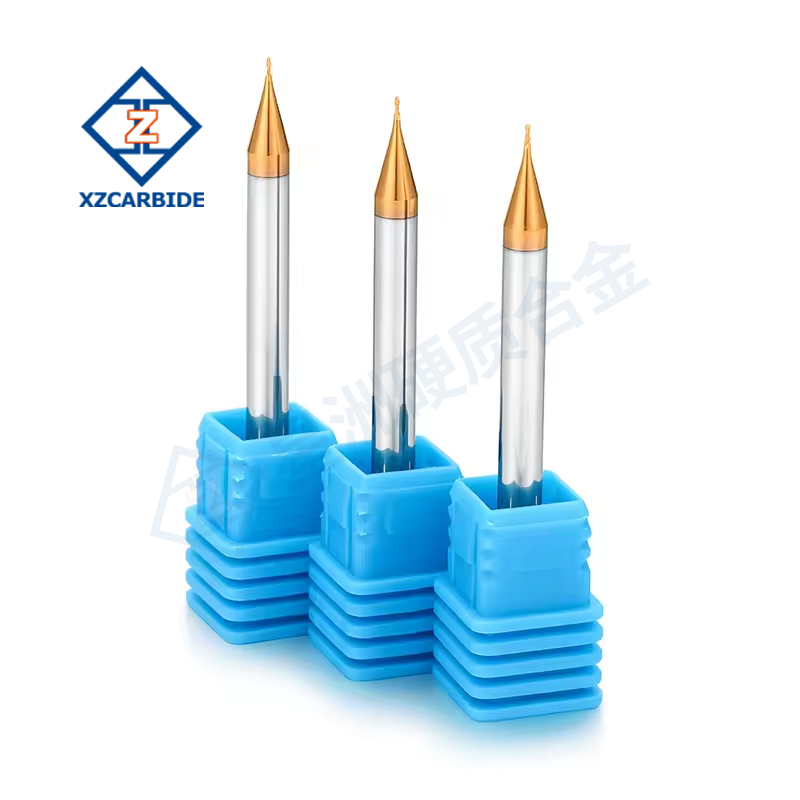

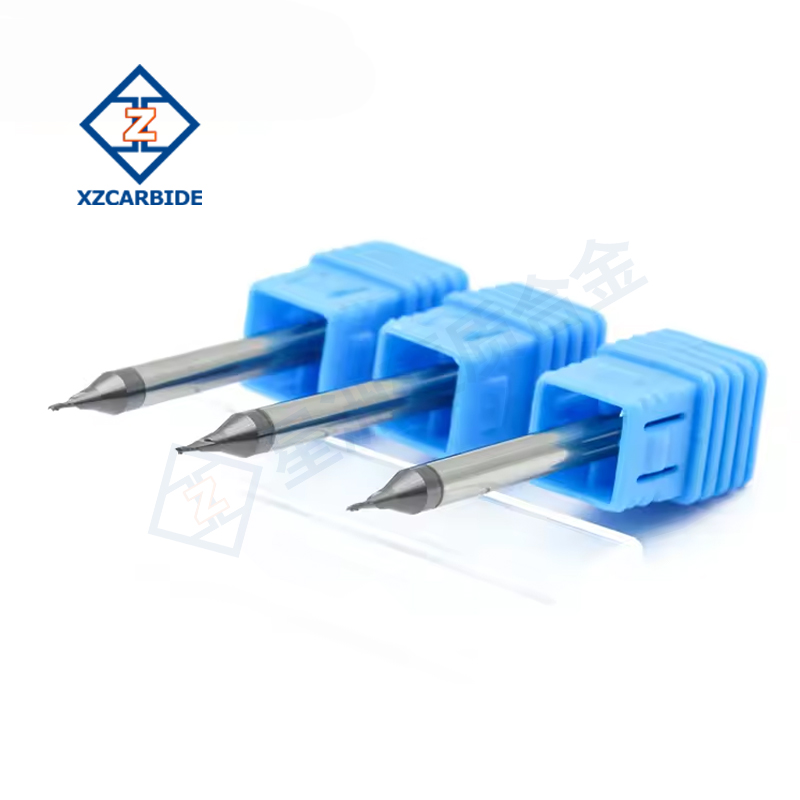

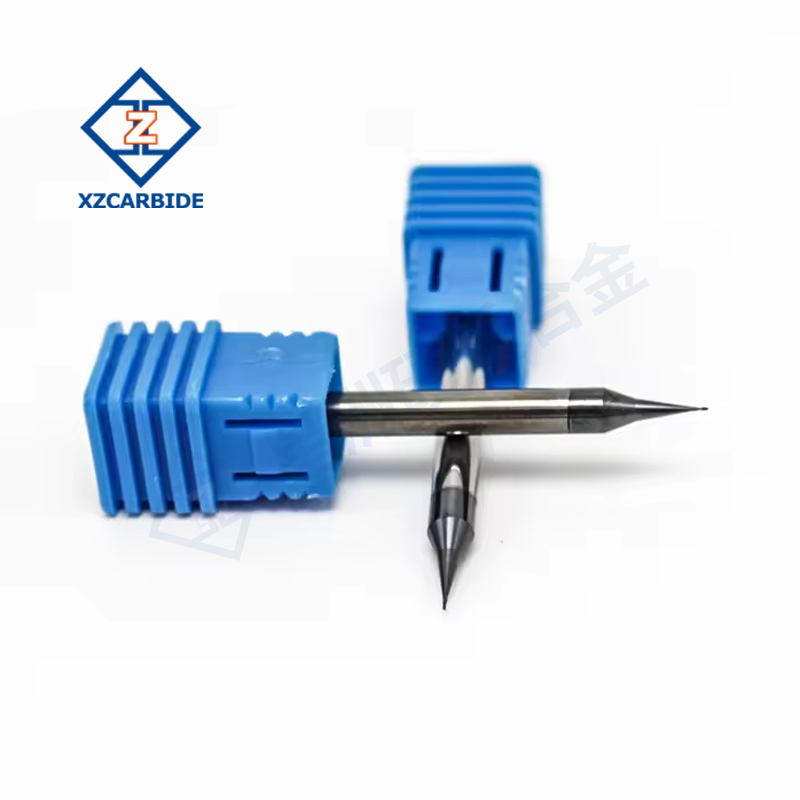

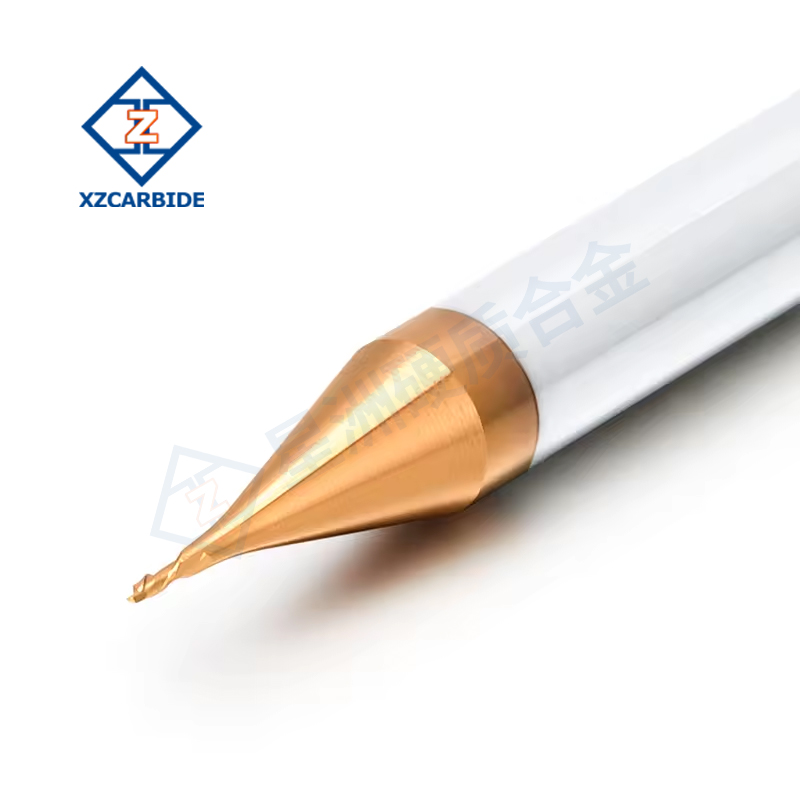

Tungsten carbide Micro Diameter Square End Mill/long neck square milling cutter
Tungsten carbide micro diameter square milling cutter and long neck square milling cutter are precision machining cutting tools suitable for micro machining and deep cavity machining.
Tungsten carbide material has high hardness, high wear resistance and high rigidity.
Applications

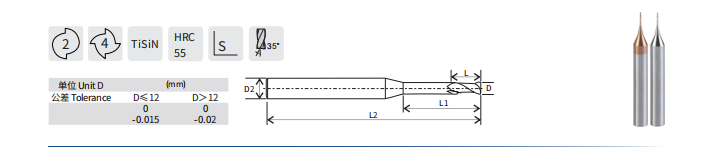

| Long Neck SquareEnd Mill | ||||||
| 单位Unit:mm | ||||||
| Model | Diameter | Cutting Length L | Shank D2 | Effective cutting Length LI | Overall Length L2 | |
| D | ||||||
| Standard | SGPD-2F-00302040250 | 0.3 | 0.6 | 4 | 2/3 | 50 |
| SGPD-2F-00402040350 | 0.4 | 0.8 | 4 | 3/4/5/6 | 50 | |
| SGPD-2F-00502040250 | 0.5 | 1 | 4 | 2/3/4/6/8 | 50 | |
| SGPD-2F-00602040250 | 0.6 | 1.2 | 4 | 2/3/4/6/8 | 50 | |
| SGPD-2F-00703040350 | 0.7 | 1.4 | 4 | 3/4/6/8/10 | 50 | |
| SGPD-2F-00803040350 | 0.8 | 1.6 | 4 | 3/4/6/8/10 | 50 | |
| SGPD-2F-00903040350 | 0.9 | 1.8 | 4 | 3/4/6/8/10 | 50 | |
| SGPD-4F-0103040650 | 1 | 3 | 4 | 6/8/10/12/16/20 | 50 | |
| SGPD-4F-01506040650 | 1.5 | 4.5 | 4 | 6/8/10/12/16/20 | 50 | |
| SGPD-4F-0206040850 | 2 | 6 | 4 | 8/10/12/16/20 | 50 | |
| SGPD-4F-025080410450 | 2.5 | 8 | 4 | 10/12/16/20 | 50 | |
| SGPD-4F-0309041250 | 3 | 9 | 4 | 12/16/20 | 50 | |
| Or customized | ||||||

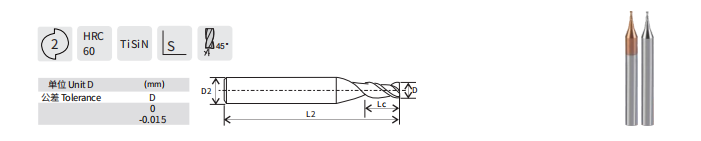

| Micro Diameter Square End Mill | |||||
| 单位Unit:mm | |||||
| Model | Diameter D | Cutting Length L | Shank D2 | Overall Length L2 | |
| Standard | WXJPD-2F-0020040450 | 0.2 | 0.4 | 4 | 50 |
| WXJPD-2F-0030060450 | 0.3 | 0.6 | 4 | 50 | |
| WXJPD-2F-0040080450 | 0.4 | 0.8 | 4 | 50 | |
| WXJPD-2F-005010450 | 0.5 | 1 | 4 | 50 | |
| WXJPD-2F-0060120450 | 0.6 | 1.2 | 4 | 50 | |
| WXJPD-2F-00740140450 | 0.7 | 1.4 | 4 | 50 | |
| WXJPD-2F-0080160450 | 0.8 | 1.6 | 4 | 50 | |
| WXJPD-2F-0090180450 | 0.9 | 1.8 | 4 | 50 | |
| Or customized | |||||
