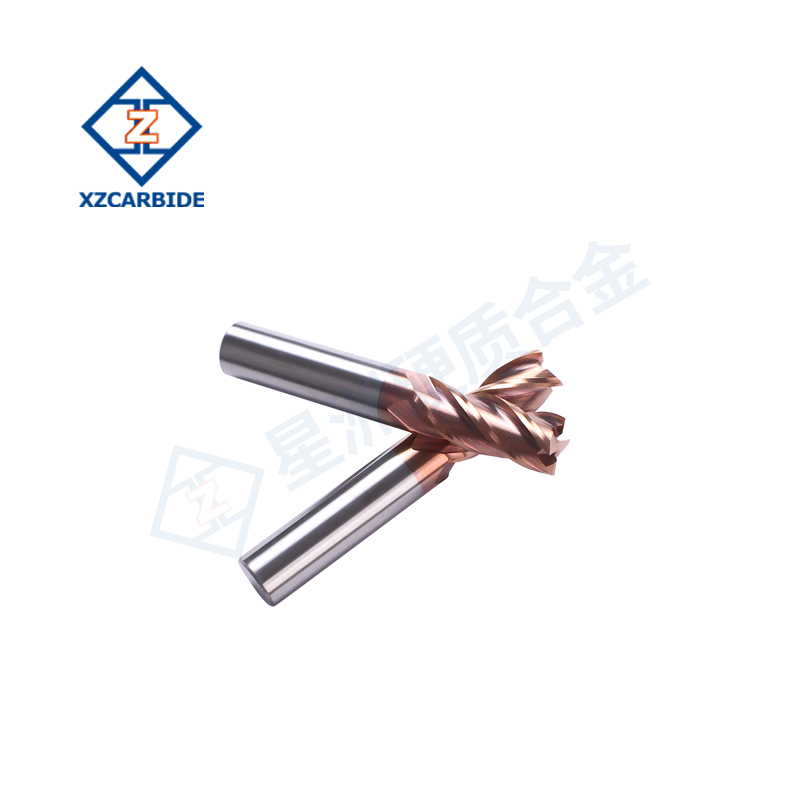

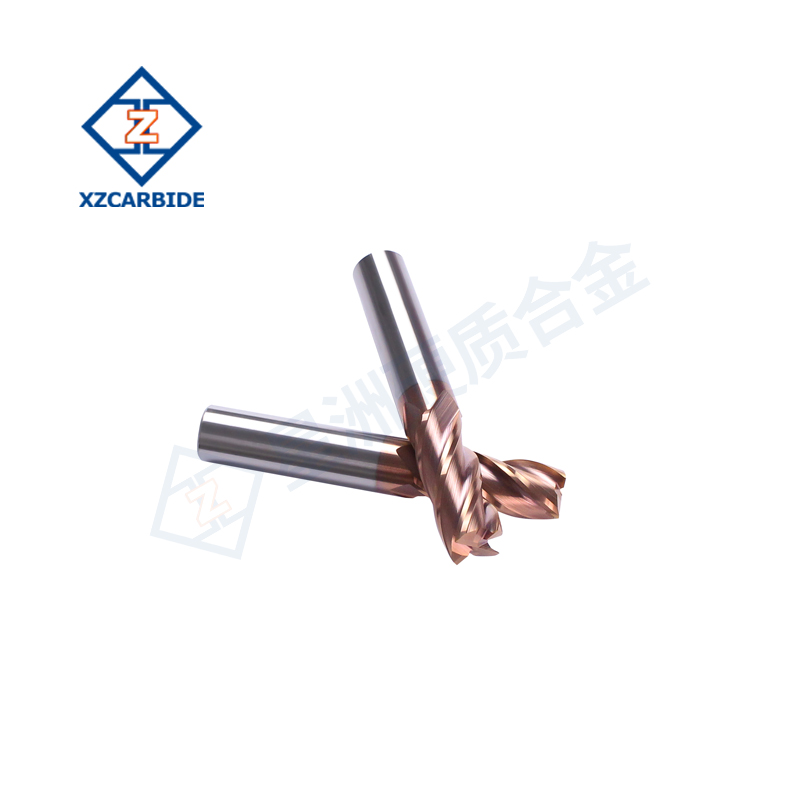

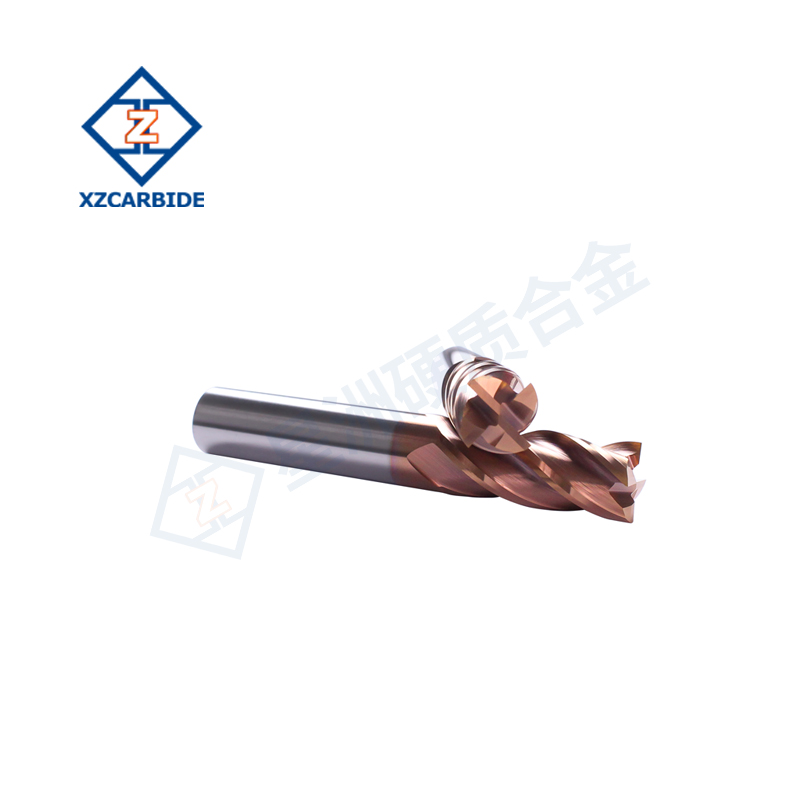

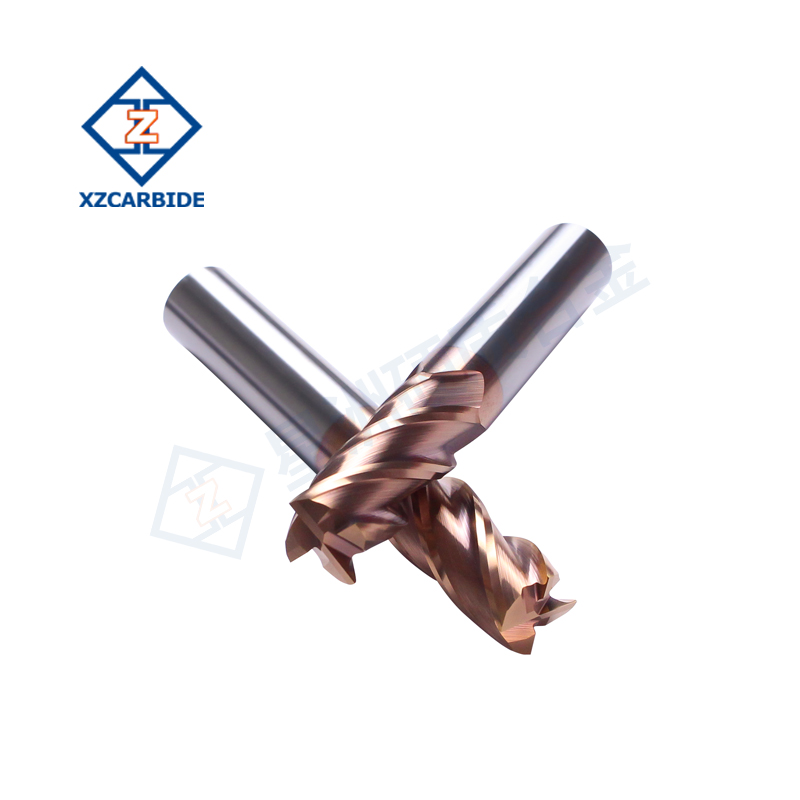

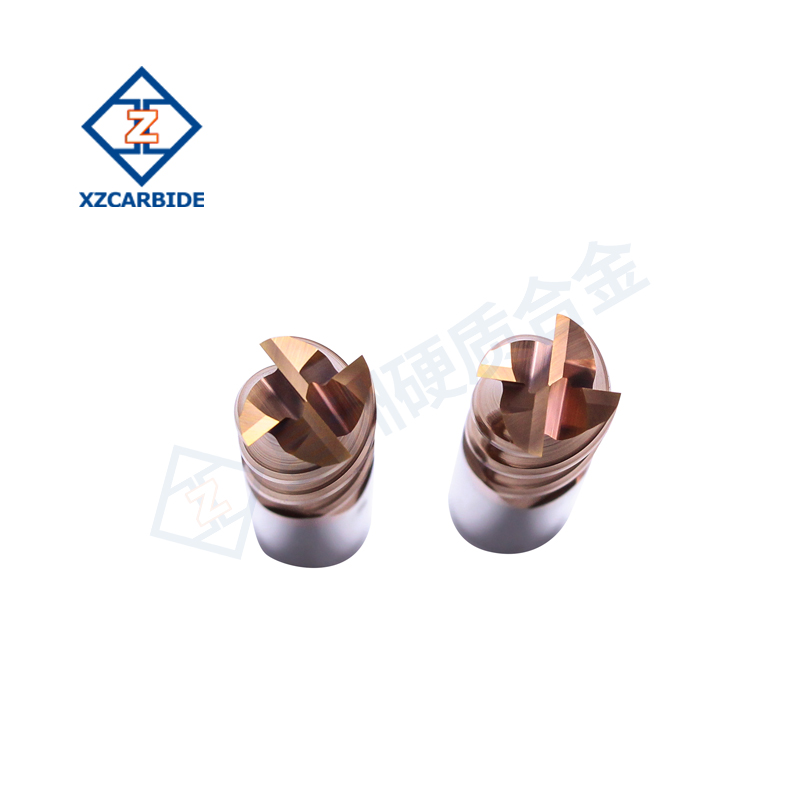

HRC45 55 65 solid carbide flat blade end mill
Suitable for ordinary steel,P20,cast iron materials processing.
High-performance TiSiN coating,high temperature and wear resistance.
Ultra-fine grained carbide material.

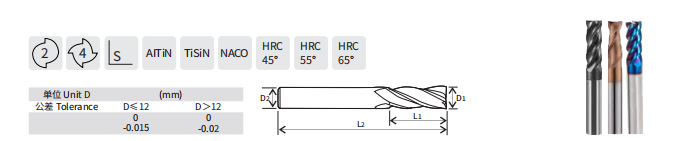

Specifications
| 单位Unit:mm | |||||
| Model | Diameter D | Cutting Length | Shank D2 | Overall Length L2 | |
| Standard | PD-4F-01030450 | 1 | 3 | 4 | 50 |
| PD-4F-015050450 | 1.5 | 5 | 4 | 50 | |
| PD-4F-02060450 | 2 | 6 | 4 | 50 | |
| PD-4F-025080450 | 2.5 | 8 | 4 | 50 | |
| PD-4F-03090350 | 3 | 9 | 3 | 50 | |
| PD-4F-03090450 | 3 | 9 | 4 | 50 | |
| PD-4F-035110450 | 3.5 | 11 | 4 | 50 | |
| PD-4F-04120450 | 4 | 12 | 4 | 50 | |
| PD-4F-05130550 | 5 | 13 | 5 | 50 | |
| PD-4F-05130650 | 5 | 13 | 6 | 50 | |
| PD-4F-06150650 | 6 | 15 | 6 | 50 | |
| PD-4F-07200860 | 7 | 20 | 8 | 60 | |
| PD-4F-0820860 | 8 | 20 | 8 | 60 | |
| PD-4F-08240860 | 8 | 24 | 8 | 60 | |
| PD-4F-09251075 | 9 | 25 | 10 | 75 | |
| PD-4F-10251075 | 10 | 25 | 10 | 75 | |
| PD-4F-10301075 | 10 | 30 | 10 | 75 | |
| PD-4F-11301275 | 11 | 30 | 12 | 75 | |
| PD-4F-12301275 | 12 | 30 | 12 | 75 | |
| PD-4F-12351275 | 12 | 35 | 12 | 75 | |
| PD-4F-134514100 | 13 | 45 | 14 | 100 | |
| PD-4F-144514100 | 14 | 45 | 14 | 100 | |
| PD-4F-154516100 | 15 | 45 | 16 | 100 | |
| PD-4F-164516100 | 16 | 45 | 16 | 100 | |
| PD-4F-184518100 | 18 | 45 | 18 | 100 | |
| PD-4F-204520100 | 20 | 45 | 20 | 100 | |
| Or customized | |||||
Applications

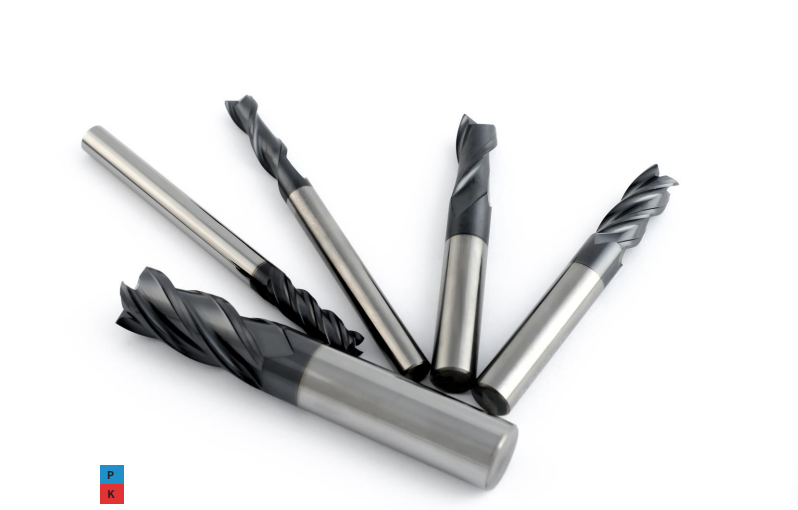

HRC45 end mill Suitable for processing ordinary steel nd cast iron materials
Suitable for processing low alloy steel,No.45 steel,ect.
Chipbreaker treatmentforspecial cutting edge
High-performance AITIN coating,high temperature resistance,wear resistance

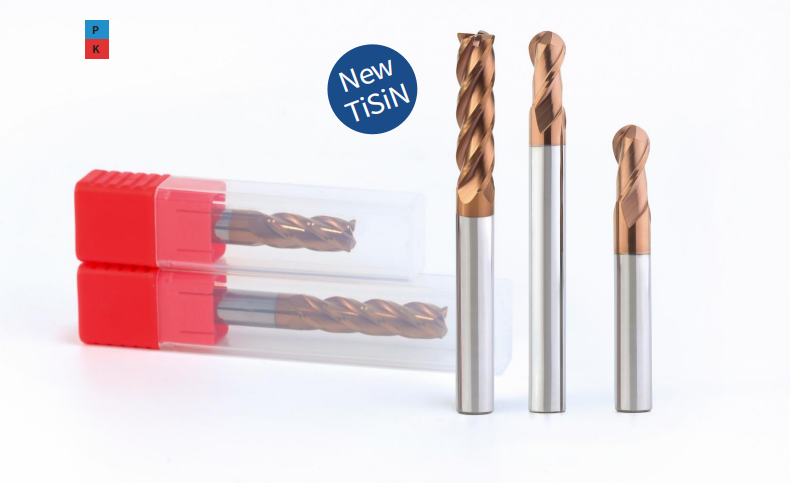

HRC55 Bronze SeriesGeneralmachining end mills
Suitable for ordinary steel,P20,cast iron materials processing.
High-performance TiSiN coating,high temperature and wear resistance.
Ultra-fine grained carbide material.
Improved edge wear resistance and tool rigidity
General processing ofvarious steelsStrong anti-sticking ability,improve tool life,
35°helix angle design,Smooth cutting without chip accumulation

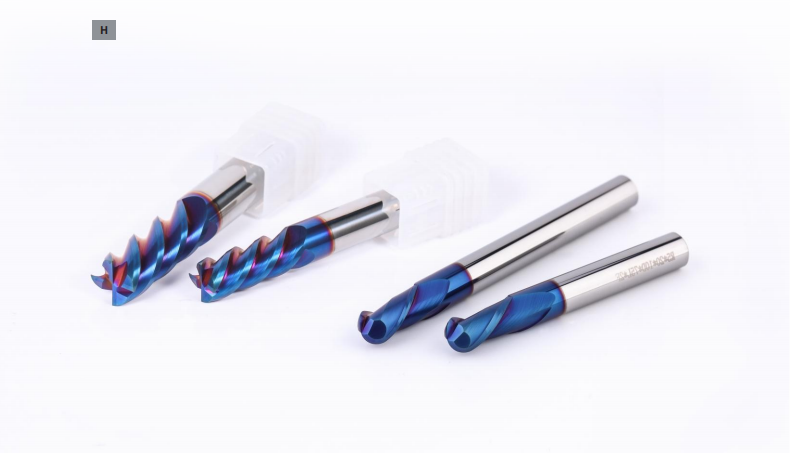

HRC65 high hardness and high efficiency machining end mill
Suitable for high efficiency machining of high hardness steel parts. Can machine stainless steel, quenched and tempered steel and general heat-treated steel, suitable for finishing
Excellent shock resistance
0.4μm micro-grain size, can machine stainless steel, most quenched and tempered steel and general steel after heat treatment.
