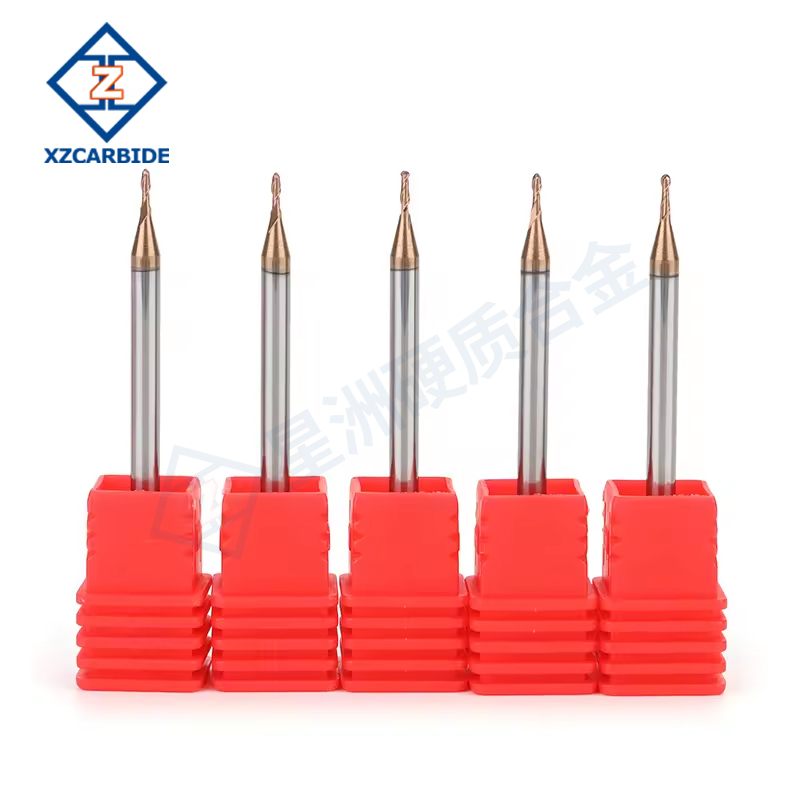

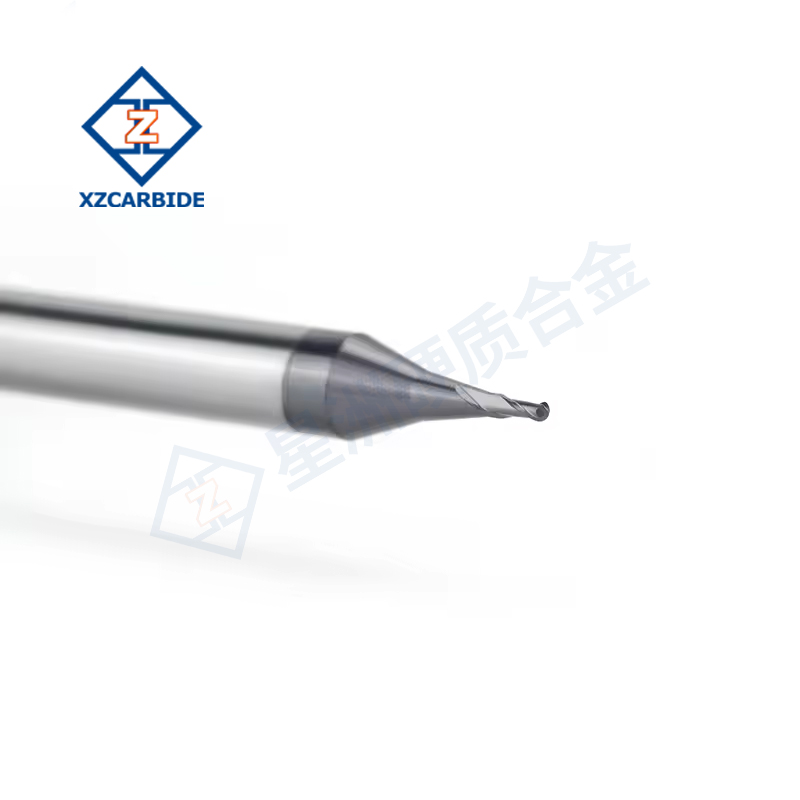

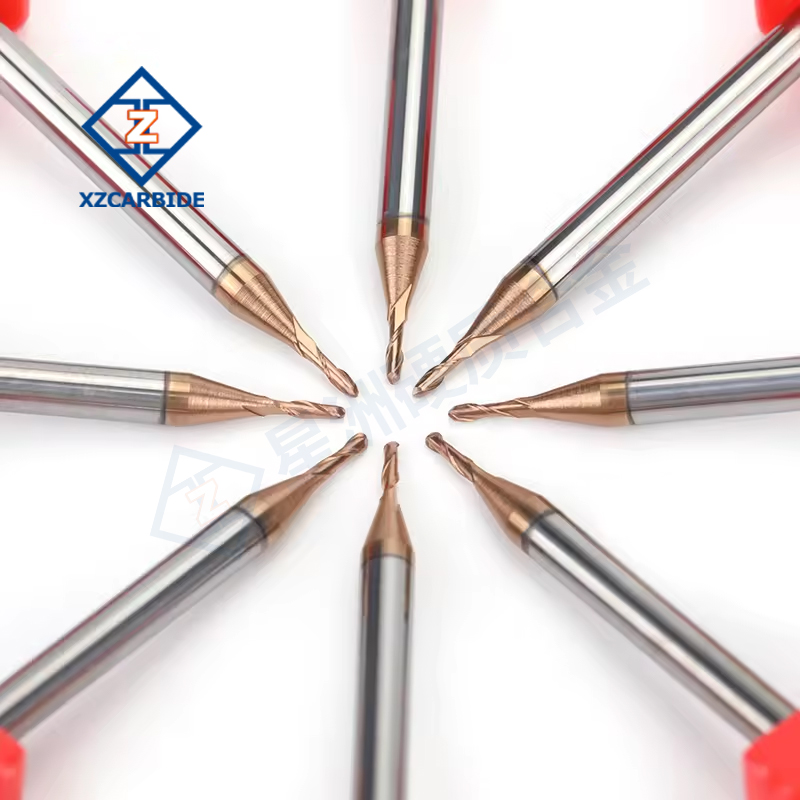

Micro Diameter Ball Nose End Mill

Micro diameter ball end mill is a cutting tool used for precision machining, with a diameter usually between 0.3mm and 3mm, and a spherical blade.

It is used for micro-machining in mold manufacturing, medical equipment, electronic components, precision parts and other fields.

INQUIRY

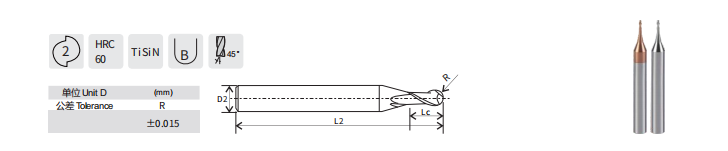

Micro Diameter Ball Nose End Mill
单位Unit:mm
Model	Diameter D	Radius R	Shank D2	Overall Length	L2
Standard	WXJQD-2F-0030060450	0.3	0.15	4	50
	WXJQD-2F-0040080450	0.4	0.2	4	50
	WXJQD-2F-005010450	0.5	0.25	4	50
	WXJQD-2F-0070140450	0.7	0.35	4	50
	WXJQD-2F-0080160450	0.8	0.4	4	50
	WXJQD-2F-0090180450	0.9	0.45	4	50
Or customized

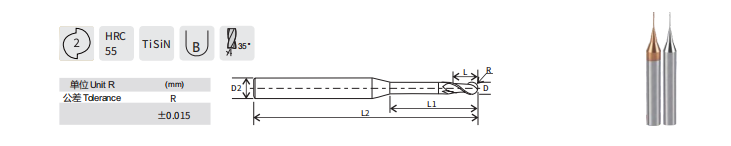

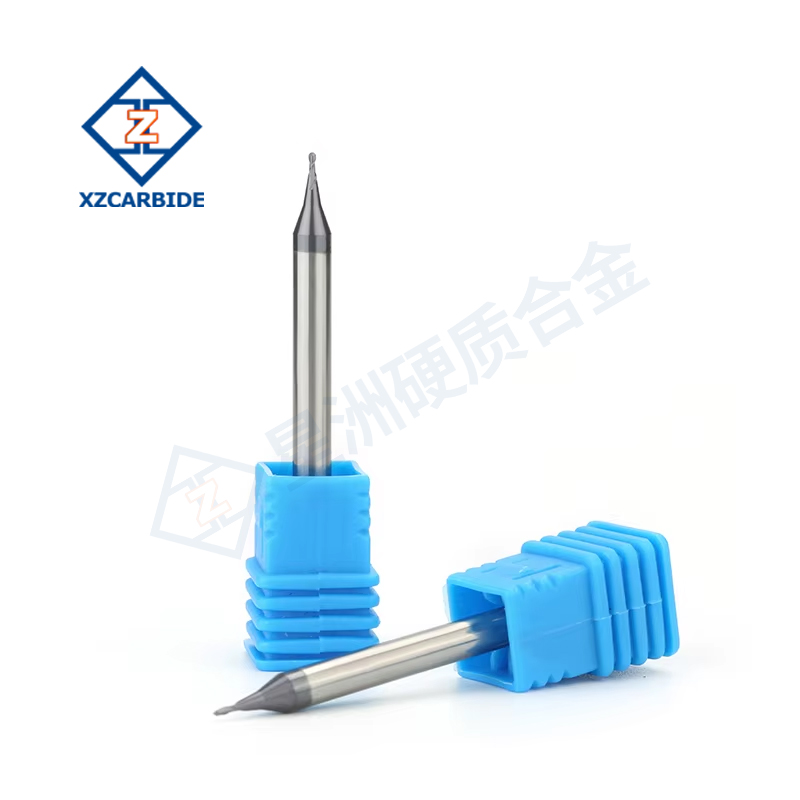

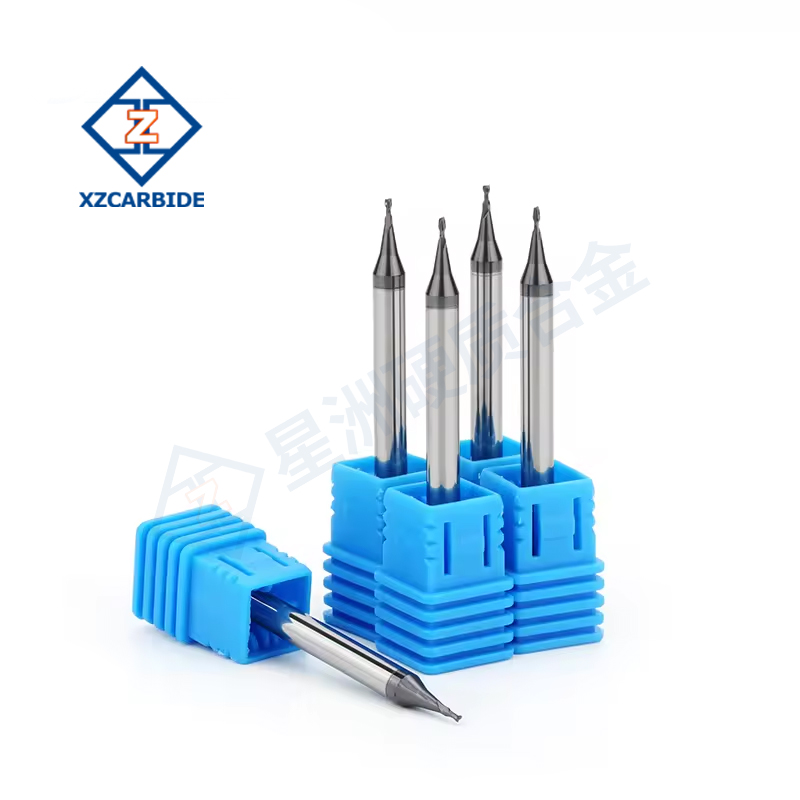

LongNeck BallNose End Mill
单位Unit:mm
Model	Radius R	Cutting Length L	Shank D2	Effective cutting Length LI	Overall Length L	L2
Standard	SGQD-2F-001504020250	0.15	0.6	4	02/3/4	50
	SGOD-2F-00204020250	0.2	0.8	4	2/3/4/5/6	50
	SGOD-2F-002504020250	0.25	1	4	2/3/4/6/8	50
	SGQD-2F-00304020250	0.3	1.2	4	2/3/4/6/8	50
	SGQD-2F-003504030350	0.35	1.4	4	3/4/6/8/10	50
	SGOD-2F-00404030350	0.4	1.6	4	3/4/6/8/10	50
	SGQD-2F-00504060650	0.5	2	4	6/8/10/12/16/20	50
	SGQD-2F-007504060650	0.75	3	4	6/8/10/12/16/20	50
	SGQD-4F-0104060650	1	4	4	6/8/10/12/16/20	50
Or customized

Number of blades:

2F: suitable for soft materials (such as aluminum alloys, plastics) and efficient chip removal.

4F: suitable for hard materials (such as steel, stainless steel) and high-precision machining.

Coating selection:

TiN: suitable for general steel machining.

TiAlN: suitable for high-temperature alloys and stainless steel machining.

AlCrN: suitable for high-hardness material machining.
