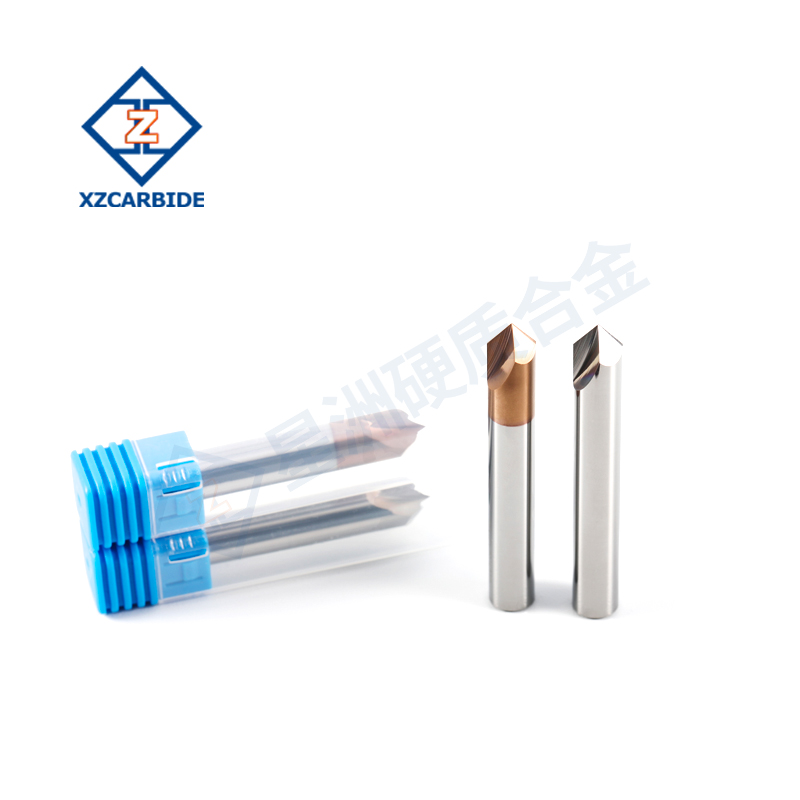

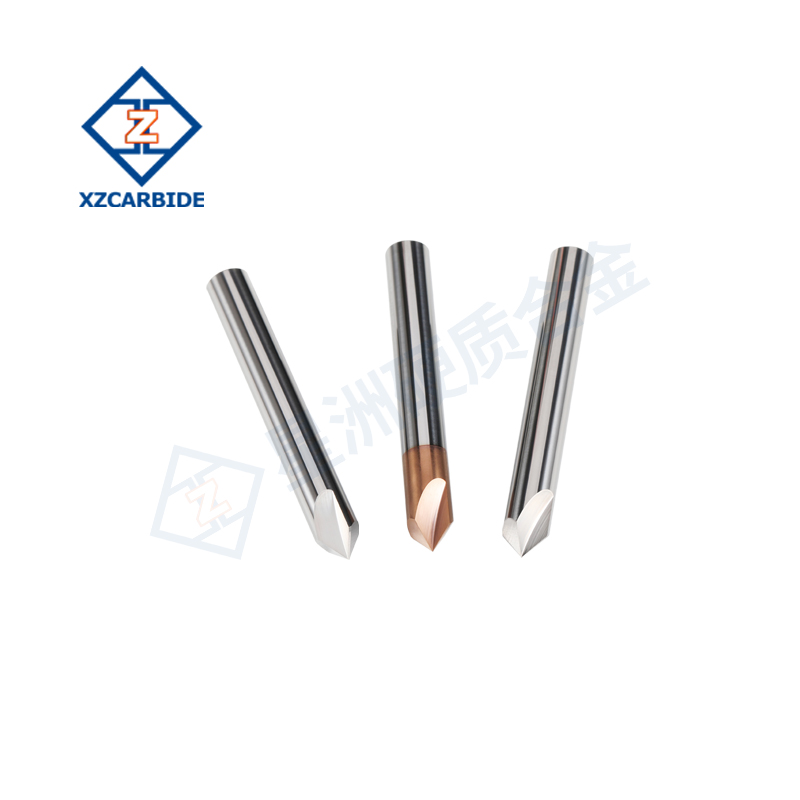

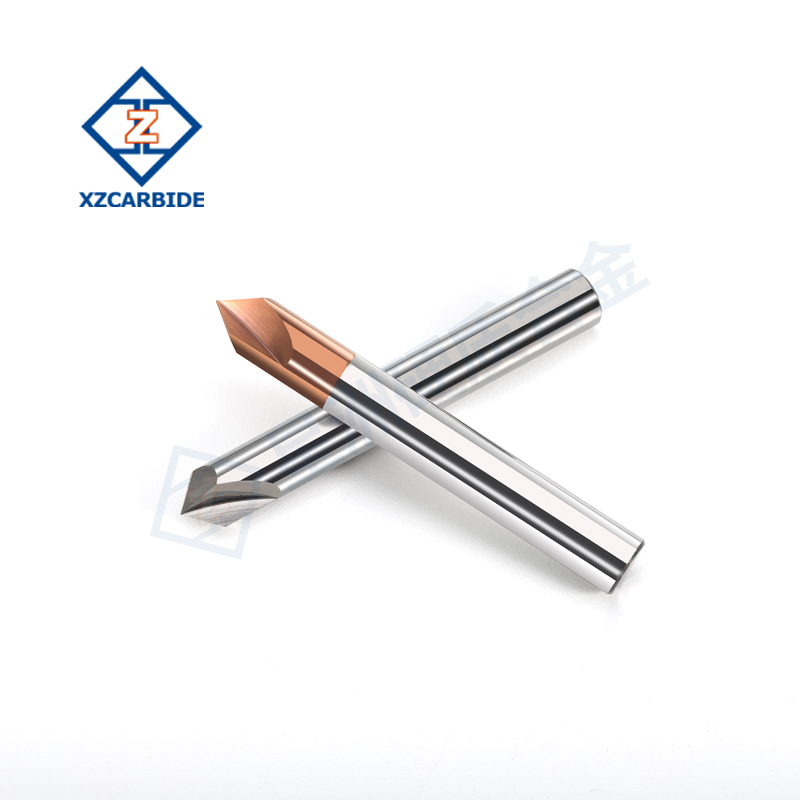

Precision Chamfer Tool for Accurate Edge Beveling and Finishing Tasks
Tools for creating beveled or rounded corners on the edges of workpieces that increase part safety, aesthetics, and reduce stress concentrations. Widely used in the mechanical, metal, and woodworking industries.
Description
Core Features
High hardness and strength: High quality tungsten carbide raw material is used to ensure that the chamfer tool has extremely high hardness and strength.
Wear-resistant: After special heat treatment, it effectively improves the service life.
High temperature resistance: Able to maintain stable performance under high temperature environment.
High precision: Ensure dimensional accuracy through precision machining.
Efficient machining: Optimized geometric design improves machining efficiency and chamfering quality.
Support customization: Provide multiple choices of chamfering angles to meet different processing needs.
Specifications
HRC55 with TiAlN coating
| Diameter | Angle | Shank | Overall Length |
| 2 | 60° | 4 | 50 |
| 2 | 120° | 4 | 50 |
| 3 | 120° | 3 | 50 |
| 3 | 60° | 4 | 50 |
HRC65 with TiAlSiN coating
| Diameter | Angle | Shank | Overall Length |
| 3 | 90° | 3 | 50 |
| 3 | 90° | 4 | 50 |
| 4 | 90° | 4 | 50 |
| 5 | 90° | 5 | 50 |
HRC55 for Aluminum
| Diameter | Angle | Shank | Overall Length |
| 2 | 60° | 4 | 50 |
| 2 | 60° | 4 | 50 |
| 3 | 60° | 3 | 50 |
| 3 | 120° | 3 | 50 |
All models above can be customized
Applications
Mechanical: Chamfering the edges of parts to improve fit and aesthetics.
Metal: Deburring and rounding of metal parts in the manufacturing process.
Woodworking: Edge processing of wood products to enhance product texture and safety.
