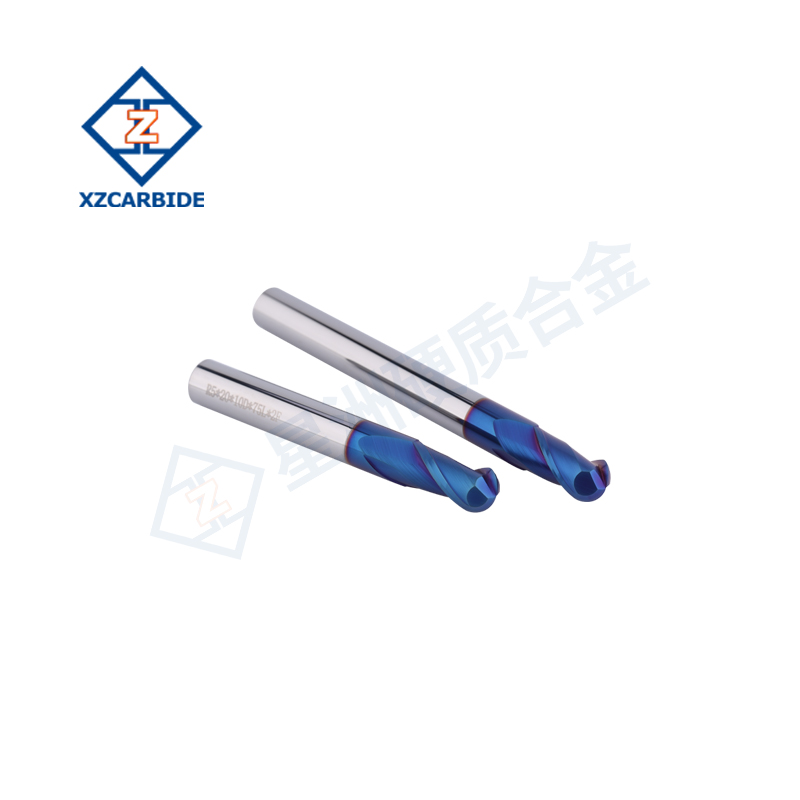

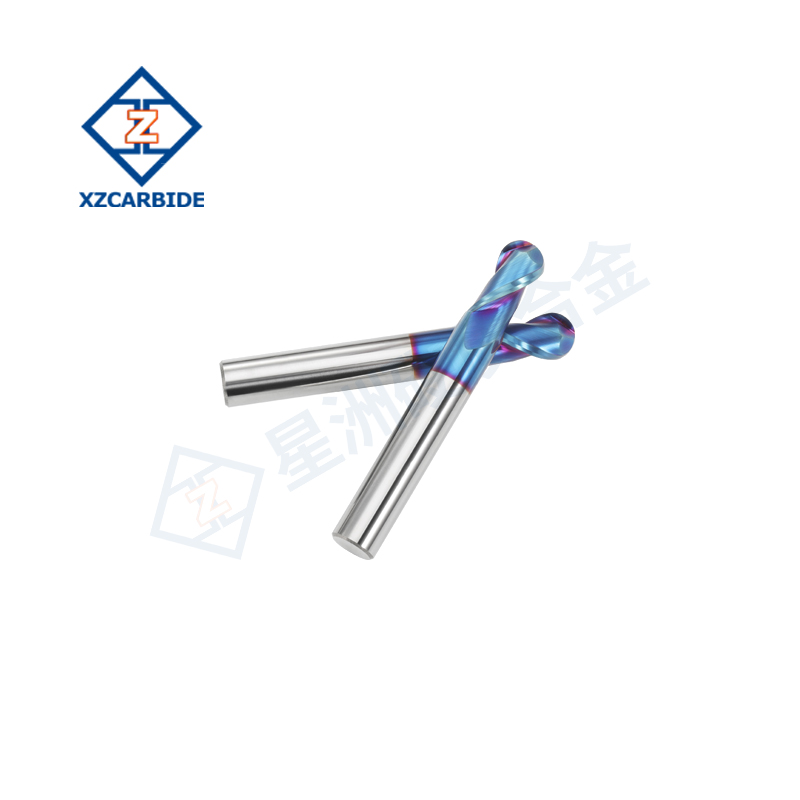

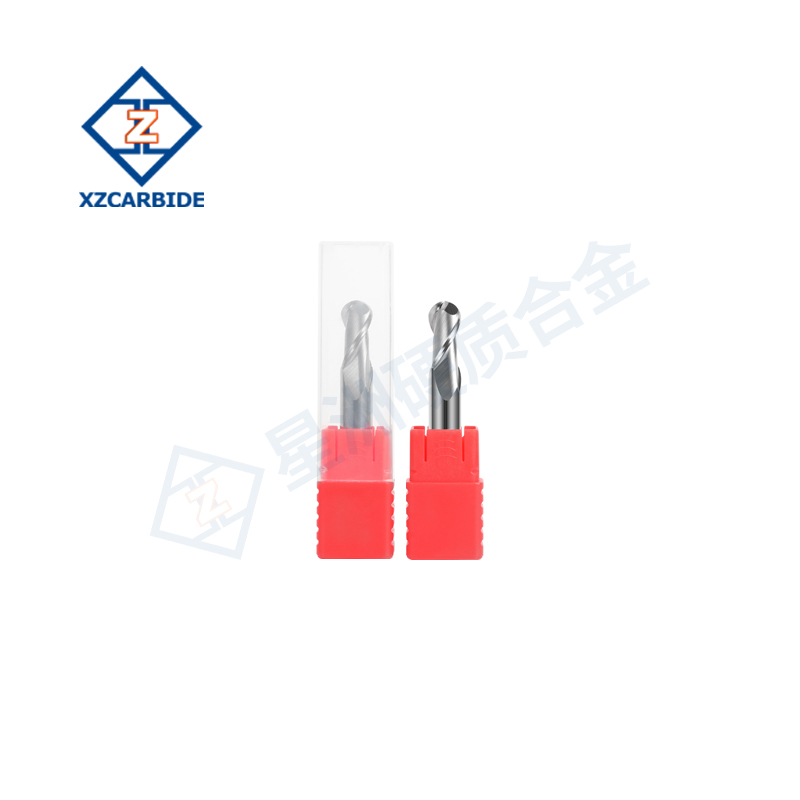

Versatile Ball Nose End Mill for Smooth Contour Cutting and Shaping
Commonly used in metal machining, the spherical design of the head section produces a smooth surface during the machining process. Suitable for contouring, curving and 3D surface machining.
Description
Main Features
Spherical head design: The head section is spherical, making it suitable for machining curves and complex surfaces.
Excellent cutting performance: The high hardness carbide material ensures stable cutting results and tool life.
Multiple machining applications: Suitable for contouring, curve machining as well as milling and finishing of complex 3D surfaces.
Specifications
Basic Information
| Material | Cemented carbide, high speed steel, tungsten steel |
| Hardness | HRC 45, HRC 55, HRC65 |
| Number of Blades | 2-flute, 4-flute, etc. |
| Coating | AlTiN, TiSiN, NACO and others |
| Dimension | Customize or refer to the table below |
Specification Parameters
Some parameters of 2-flute ball nose end mills are provided for reference, for more information, please contact our staff.
| Model | Diameter | Radius | Cutting Length | Shank | Overall Length |
| Standard | 1 | 0.5 | 2 | 4 | 50 |
| 1.5 | 0.75 | 3 | 4 | 50 | |
| 2 | 1 | 4 | 4 | 50 | |
| 2.5 | 1.25 | 5 | 4 | 50 | |
| Extra Long | 3 | 1.5 | 6 | 3 | 75 |
| 4 | 2 | 8 | 4 | 75 | |
| 5 | 2.5 | 10 | 5 | 75 | |
| 6 | 3 | 12 | 6 | 75 |
Applications
Mold machining: 3D curved and beveled surfaces for molds and dies
Aerospace: Complex shapes for aircraft parts
Automotive: Engine components and other complex parts
Medical Devices: Precision medical device components
Electronics: Complex components in electronic devices
