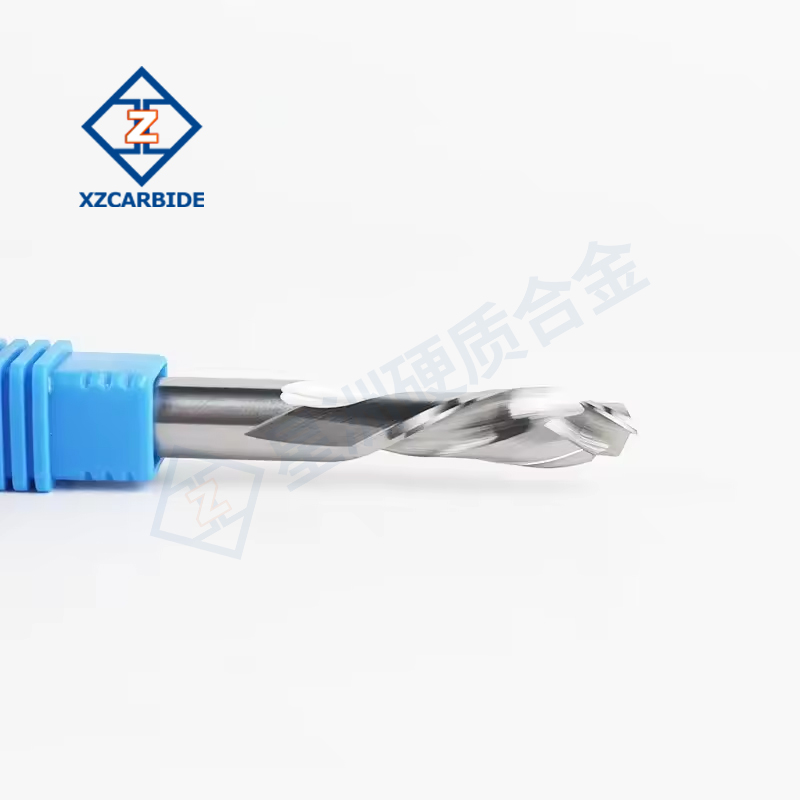

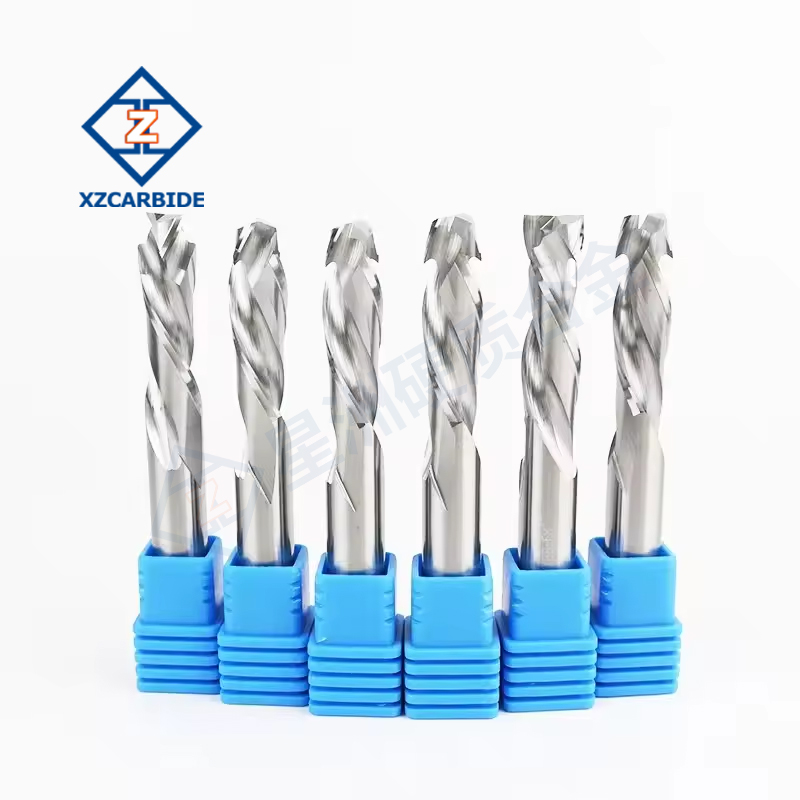

Compression Spiral Router Bit for Clean and Smooth Cuts

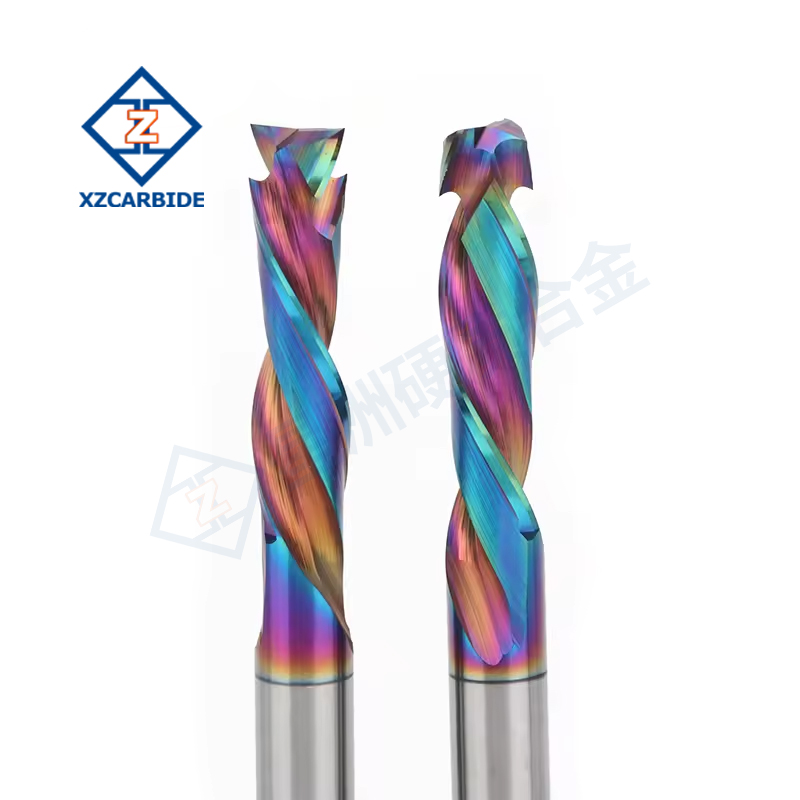

The unique double helix design features an upward helix edge on one side and a downward helix edge on the other. This design effectively minimizes tear-out of the wood surface and provides a smooth cut in both upward and downward directions.
Description
Key Features
Double-edged design: The compression spiral router bit has a double-edged design with upward and downward cutting edges, which reduces wood flaking and improves machining efficiency.
Optimized cutting geometry: The well-designed cutting edge of the tool produces a smooth cutting surface and reduces the generation of wood chips.
High cutting quality: Especially suitable for edge processing of laminates, plywood and other man-made boards, ensuring flat and burr-free edges.
Customized service: Customize the size, shape and material of the milling cutter according to the customer's needs.
Specifications
Common Used Grades
| Grade | Composition | Density(g/cm3) | Hardness(HRA) | Flexural Strength(MPa) | Properties |
| YG6 | 94% WC, 6% Co | 14.6 | 89 | 1520 | High hardness and good wear resistance , suitable for general wear and impact applications. |
| YG8 | 92% WC, 8% Co | 14.5 | 88.5 | 1600 | High hardness with impact resistance , suitable for medium impact and wear conditions. |
| YG15 | 85% WC, 15% Co | 14.0 | 86 | 2400 | High flexural strength and impact toughness , ideal for high impact and wear environments. |
| YNi8 | 92% WC, 8% Ni | 8.9 | 88.5 | 1500 | Good corrosion resistance and toughness , suitable for chemical and corrosive media environments. |
| YG20 | 80% WC, 20% Co | 14.0 | 84 | 2800 | Extremely high flexural strength and toughness , ideal for high impact and high wear environments. |
Applications
Furniture: Tenon and mortise machining for furniture.
Wood products: Precision milling of doors, windows, floors and other wood products.
Wood engraving: Fine engraving on CNC engraving machines.
