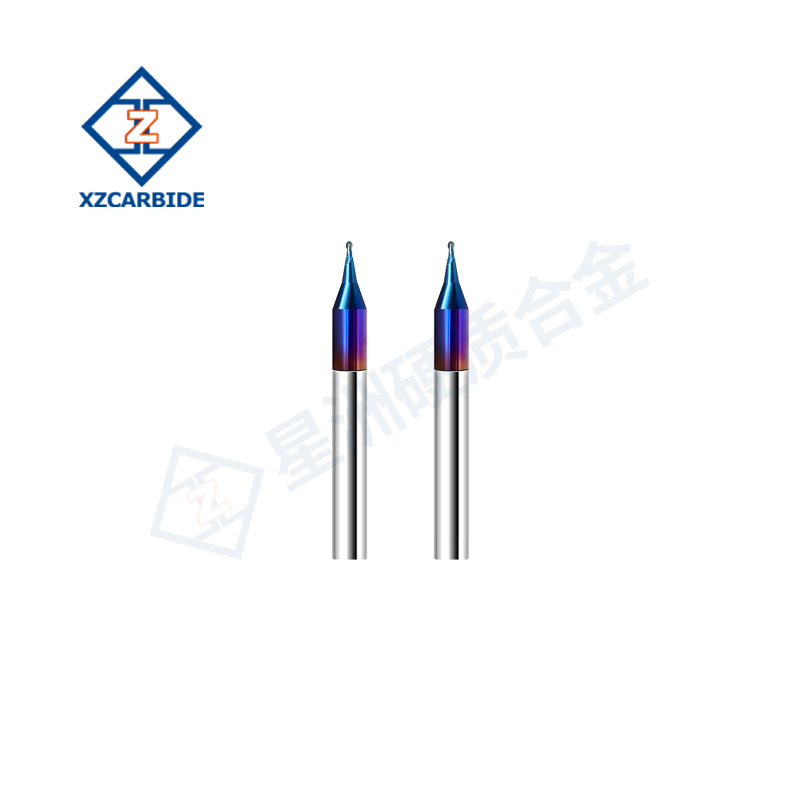

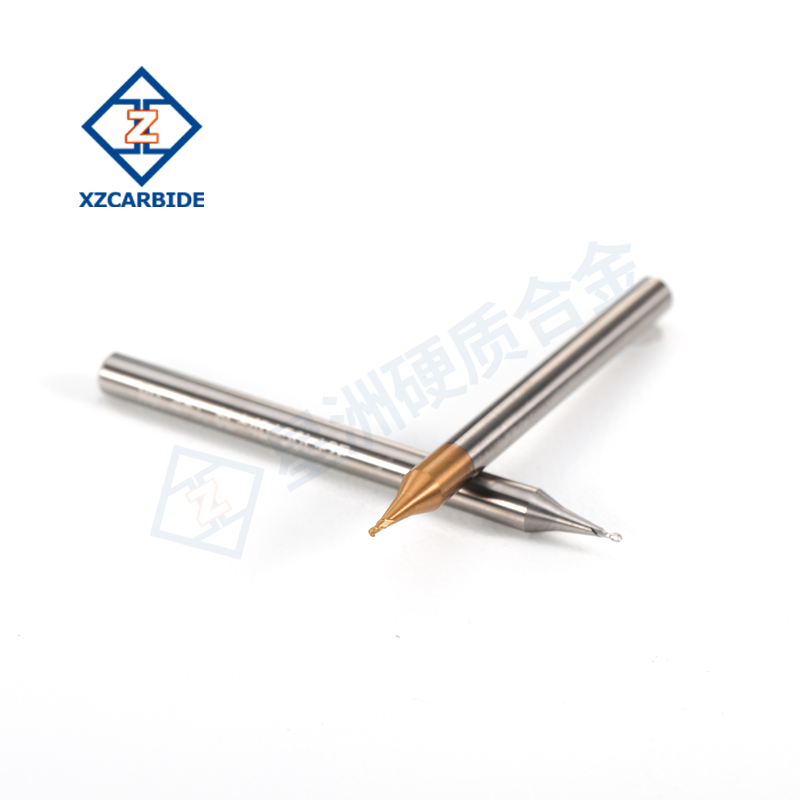

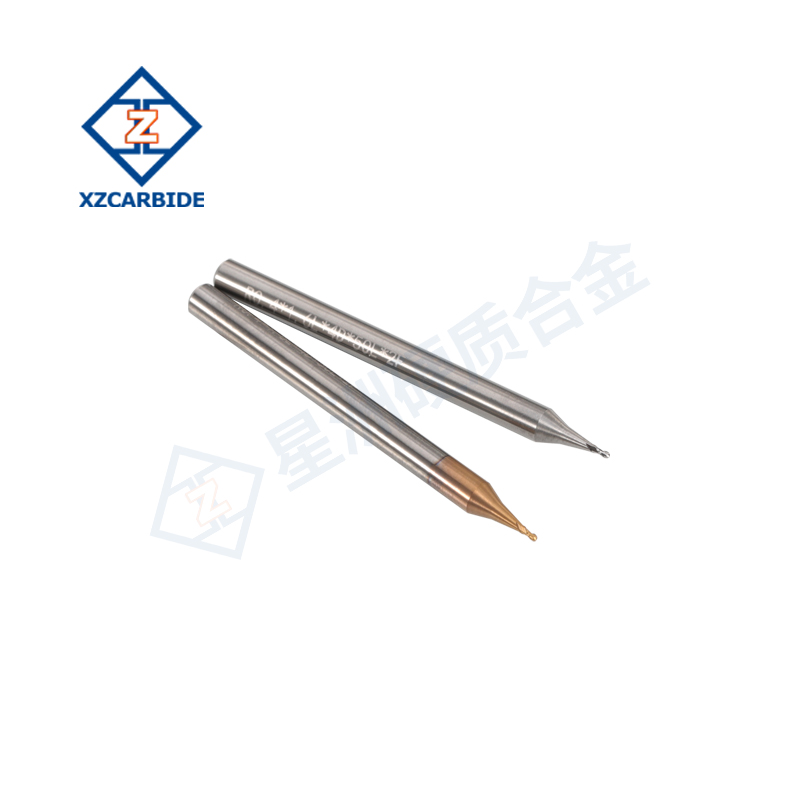

Micro Ball Nose End Mill for Detailed Contour Milling and Shaping
Designed for precision machining, the tiny spherical tip at the end of the tool enables the machining of fine curved surfaces and complex geometries for applications requiring high precision and detailed surface machining.
Description
Main Features
Miniature ball design: The tool has a tiny spherical tip at the end of the tool, enabling the machining of fine curves and surfaces.
High-precision machining: Excellent machining accuracy and surface quality for demanding micro-dimensional machining.
Multiple diameter options: Different tool diameters are available to meet different machining requirements.
Wear-resistant and durable: Made of high-quality carbide for excellent wear resistance and long life.
Specifications
Product Details
| Material | Carbide |
| Number of Flutes | 2 |
| Hardness | HRC60 |
| Coating | TiSiN |
| Endteeth Shape | Ball nose |
| Helix Angle | 45° |
Product Parameters
| Order No. | Diameter | Radius | Shank | Overall Length |
| WXJOD-2F-0030060450 | 0.3 | 0.15 | 4 | 50 |
| WXJOD-2F-0040080450 | 0.4 | 0.2 | 4 | 50 |
| WXJOD-2F-005010450 | 0.5 | 0.25 | 4 | 50 |
| WXJOD-2F-0070140450 | 0.7 | 0.35 | 4 | 50 |
| WXJOD-2F-0080160450 | 0.8 | 0.4 | 4 | 50 |
| WXJOD-2F-0090180450 | 0.9 | 0.45 | 4 | 50 |
