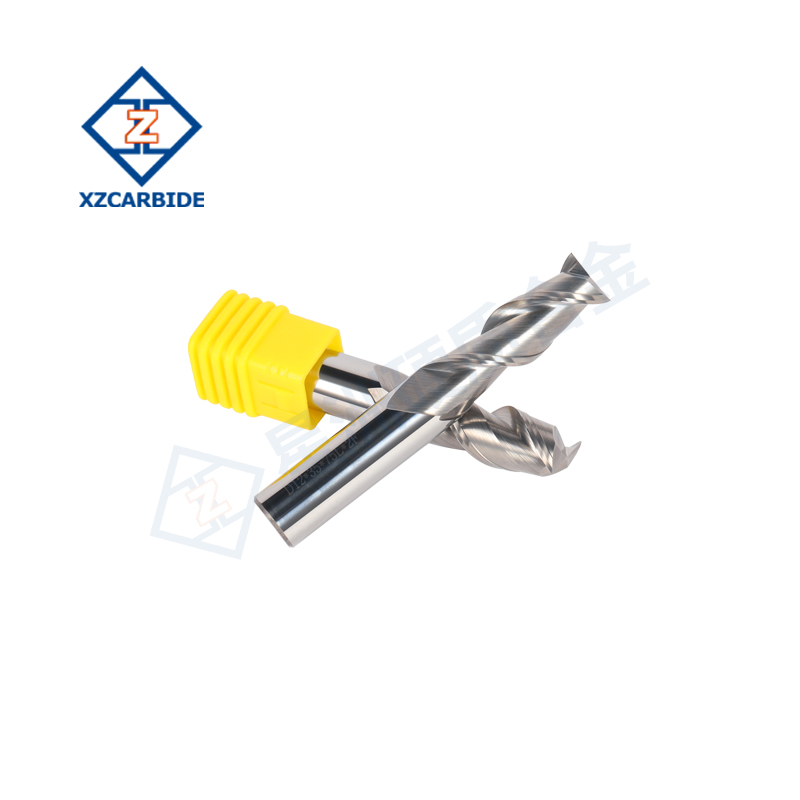

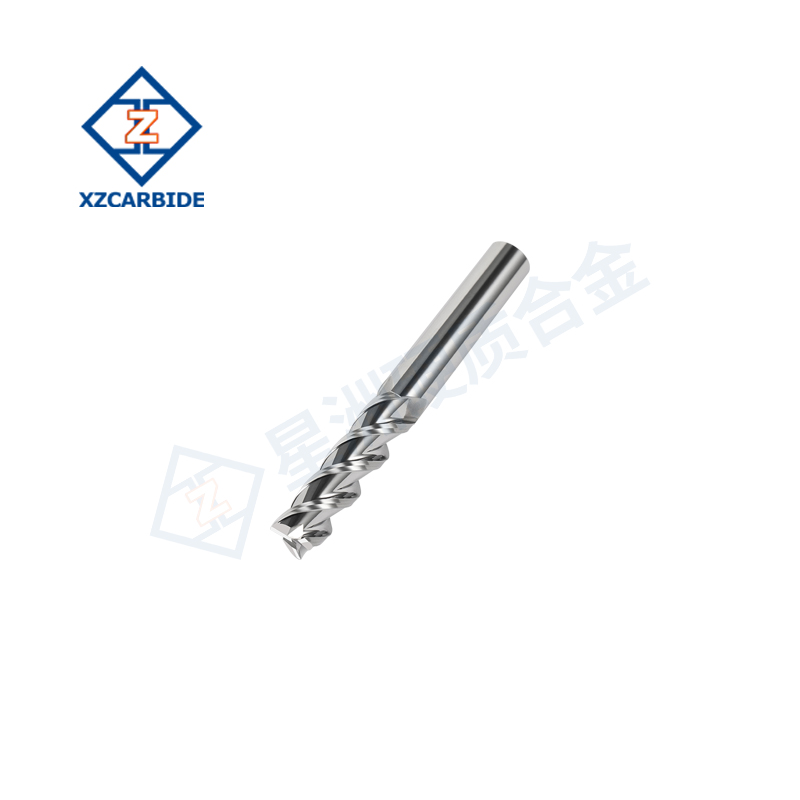

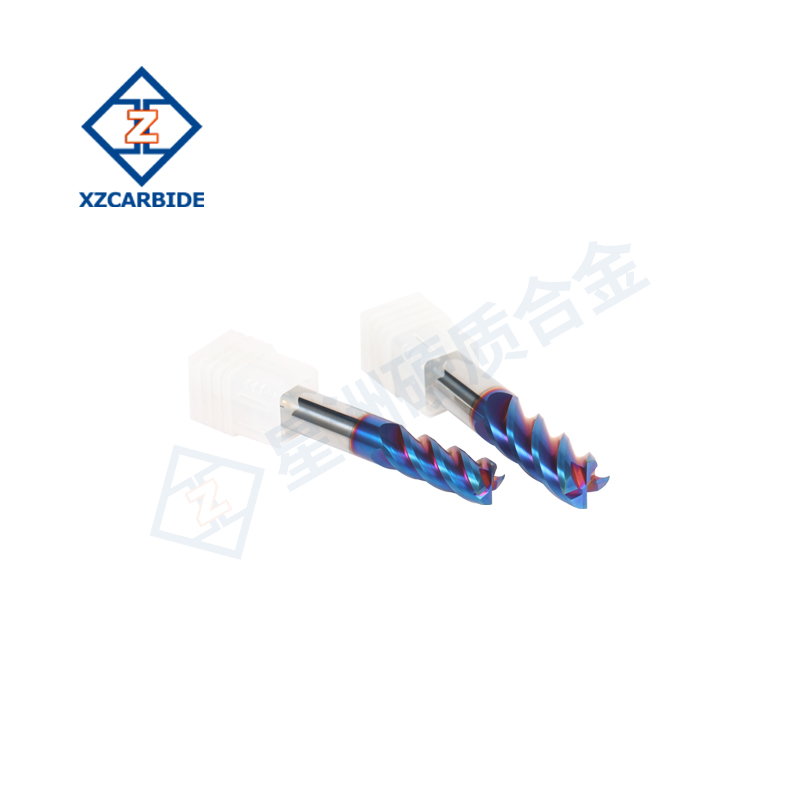

Durable Square End Mill for Precision Milling and Accurate Machining
The cutting edge is designed at a right angle to cut precise planes and sharp angles on the workpiece, and is mainly used for milling flat surfaces, grooves, and contours.
Description
Main Features
High cutting accuracy: Square end mills are capable of high-precision plane and notch machining on the surface of the workpiece, ensuring the exact size and shape of the workpiece.
Multi-purpose design: Not only for flat surface machining, but also suitable for edge molding, slot milling and other machining scenarios.
High wear resistance: The tool is made of high quality cemented carbide or HSS material, which has high hardness and wear resistance, prolonging the service life.
Wide applicability: Can be used for milling steel, stainless steel, cast iron, aluminum alloy and many other materials with high adaptability.
Specifications
Product Information
| No. of Flutes | 2/3/4 |
| Endteeth Shape | Square |
| Coating | AlTiN/TiSiN/NACO |
| Hardness | HRC45/HRC55/HRC65 |
Product Parameters
| Model | Ordering No. | Diameter | Cutting Length | Shank | Overall Length |
| Standard | PD-4F-01030450 | 1 | 3 | 4 | 50 |
| PD-4F-015050450 | 1.5 | 5 | 4 | 50 | |
| PD-4F-02060450 | 2 | 6 | 4 | 50 | |
| PD-4F-025080450 | 2.5 | 8 | 4 | 50 | |
| PD-4F-03090350 | 3 | 9 | 3 | 50 | |
| PD-4F-03090450 | 3 | 9 | 4 | 50 | |
| PD-4F-035110450 | 3.5 | 11 | 4 | 50 | |
| PD-4F-04120450 | 4 | 12 | 4 | 50 | |
| PD-4F-05130550 | 5 | 13 | 5 | 50 | |
| PD-4F-05130650 | 5 | 13 | 6 | 50 | |
| Extra Long | PD-4F-03120375 | 3 | 12 | 3 | 75 |
| PD-4F-035110475 | 3.5 | 11 | 4 | 75 | |
| PD-4F-04160475 | 4 | 16 | 4 | 75 | |
| PD-4F-05180575 | 5 | 18 | 5 | 75 | |
| PD-4F-06240675 | 6 | 24 | 6 | 75 | |
| PD-4F-08250875 | 8 | 25 | 8 | 75 | |
| PD-4F-031203100 | 3 | 12 | 3 | 100 | |
| PD-4F-042004100 | 4 | 20 | 4 | 100 | |
| PD-4F-053005100 | 5 | 30 | 5 | 100 | |
| PD-4F-063006100 | 6 | 30 | 6 | 100 | |
| PD-4F-083508100 | 8 | 35 | 8 | 100 | |
| Customization accepted | |||||
Applications
Widely used in industries that require precision machining, such as:
Automobile production
Mold and die processing
Aerospace
Electronics manufacturing
Machinery making
...
