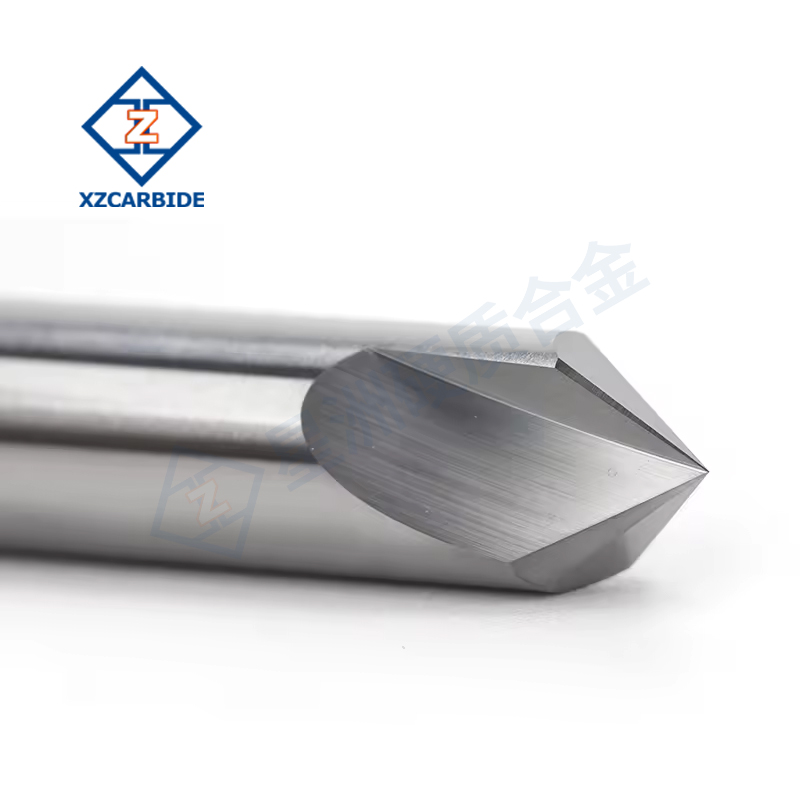

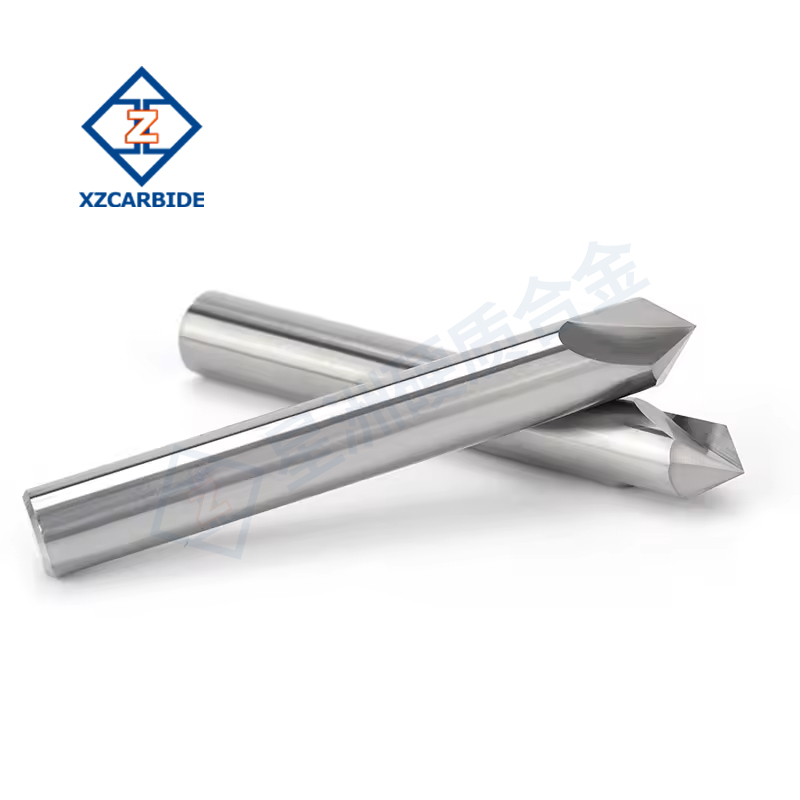

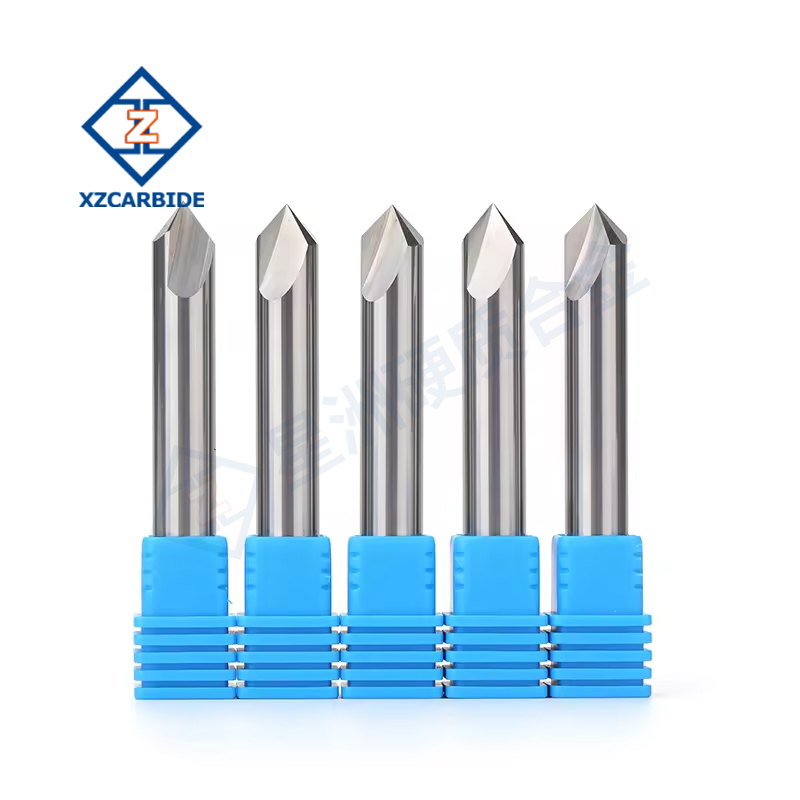

CNC Carbide Chamfer Milling Cutter
Chamfer milling is widely used for chamfering edges, deburring, and machining bevels on parts to improve their assemblability and safety.
Applications

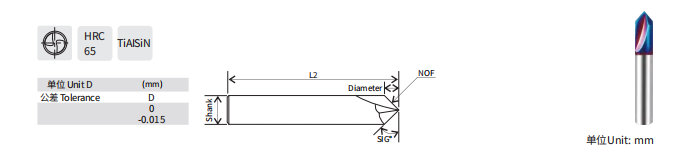

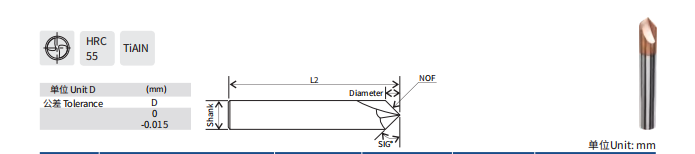

| 单位Unit:mm | |||||
| Model | Diameter | Angle | Shank D2 | Overall Length L2 | |
| D | |||||
| Standard | LYDJD-02600450 | 2 | 60° | 4 | 50 |
| LYDJD-02600450 | 2 | 60° | 4 | 50 | |
| LYDJD-03600350 | 3 | 60° | 3 | 50 | |
| LYDJD-031200350 | 3 | 120° | 3 | 50 | |
| LYDJD-03600450 | 3 | 60° | 4 | 50 | |
| LYDJD-031200450 | 3 | 120° | 4 | 50 | |
| LYDJD-03900350 | 3 | 90° | 3 | 50 | |
| LYDJD-03900450 | 3 | 90° | 4 | 50 | |
| LYDJD-04900450 | 4 | 90° | 4 | 50 | |
| LYDJD-05900550 | 5 | 90° | 5 | 50 | |
| LYDJD-06900650 | 6 | 90° | 6 | 50 | |
| LYDJD-08900860 | 8 | 90° | 8 | 60 | |
| LYDJD-10901075 | 10 | 90° | 10 | 75 | |
| LYDJD-12901275 | 12 | 90° | 12 | 75 | |
| LYDJD-02600450 | 2 | 60° | 4 | 50 | |
| LYDJD-02600450 | 2 | 60° | 4 | 50 | |
| Or customized | |||||

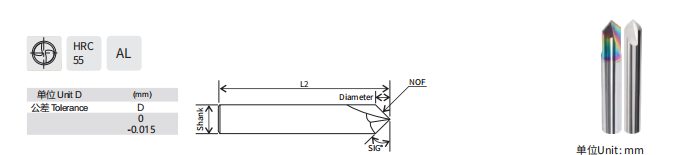

| 单位Unit:mm | |||||
| 1 | Model | Diameter D | Angle | Shank D2 | Overall Length L2 |
| Standard | DJD-03900350 | 3 | 90° | 3 | 50 |
| DJD-03900450 | 3 | 90° | 4 | 50 | |
| DJD-04900450 | 4 | 90° | 4 | 50 | |
| DJD-05900550 | 5 | 90° | 5 | 50 | |
| DJD-06900650 | 6 | 90° | 6 | 50 | |
| DJD-08900875 | 8 | 90° | 8 | 60 | |
| DJD-10901275 | 10 | 90° | 10 | 75 | |
| DJD-12901275 | 12 | 90° | 12 | 75 | |
| Or customized | |||||
| 单位Unit:mm | |||||||
| 1 | Model | Diameter | Angle | Shank D2 | Overall Length L2 | ||
| D | |||||||
| Standard | ZCDJD-02600450 | 2 | 60° | 4 | 50 | ||
| ZCDJD-021200450 | 2 | 120° | 4 | 50 | |||
| ZCDJD-031200350 | 3 | 120° | 3 | 50 | |||
| ZCDJD-03600450 | 3 | 60° | 4 | 50 | |||
| ZCDJD-031200450 | 3 | 120° | 4 | 50 | |||
| ZCDJD-03900350 | 3 | 90° | 3 | 50 | |||
| ZCDJD-04900450 | 4 | 90° | 4 | 50 | |||
| ZCDJD-05900550 | 5 | 90° | 5 | 50 | |||
| ZCDJD-06900650 | 6 | 90° | 6 | 50 | |||
| ZCDJD-08900860 | 8 | 90° | 8 | 60 | |||
| ZCDJD-10901075 | 10 | 90° | 10 | 75 | |||
| ZCDJD-10901075 | 10 | 90° | 10 | 75 | |||
| ZCDJD-04600450 | 4 | 60° | 4 | 50 | |||
| ZCDJD-041200450 | 4 | 120° | 4 | 50 | |||
| ZCDJD-041200450 | 4 | 120° | 4 | 50 | |||
| ZCDJD-06600650 | 6 | 60° | 6 | 50 | |||
| ZCDJD-06600650 | 6 | 60° | 6 | 50 | |||
| ZCDJD-10601075 | 10 | 60° | 10 | 75 | |||
| Or customized | |||||||
