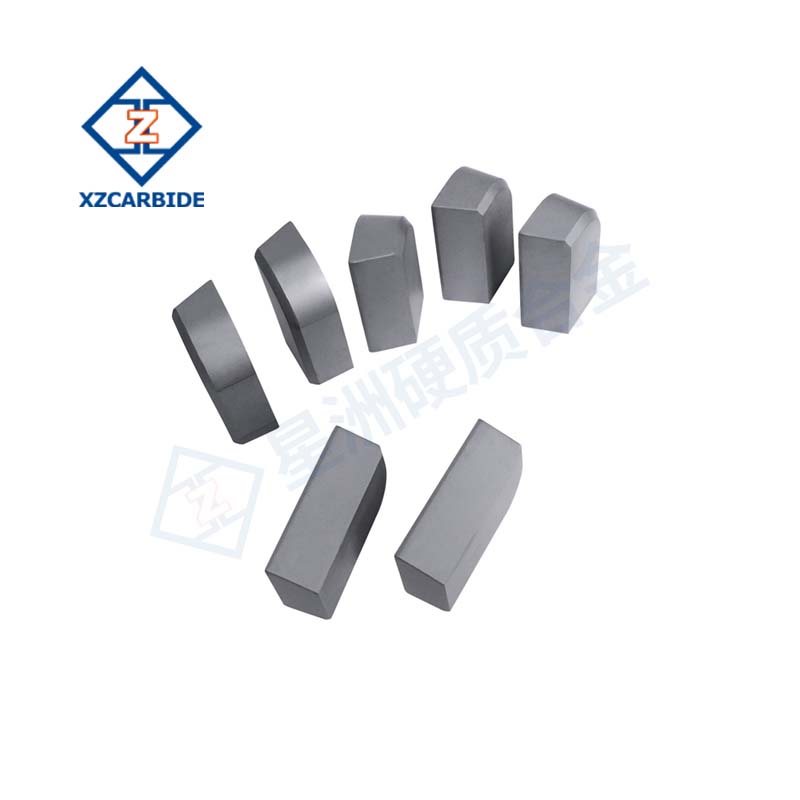

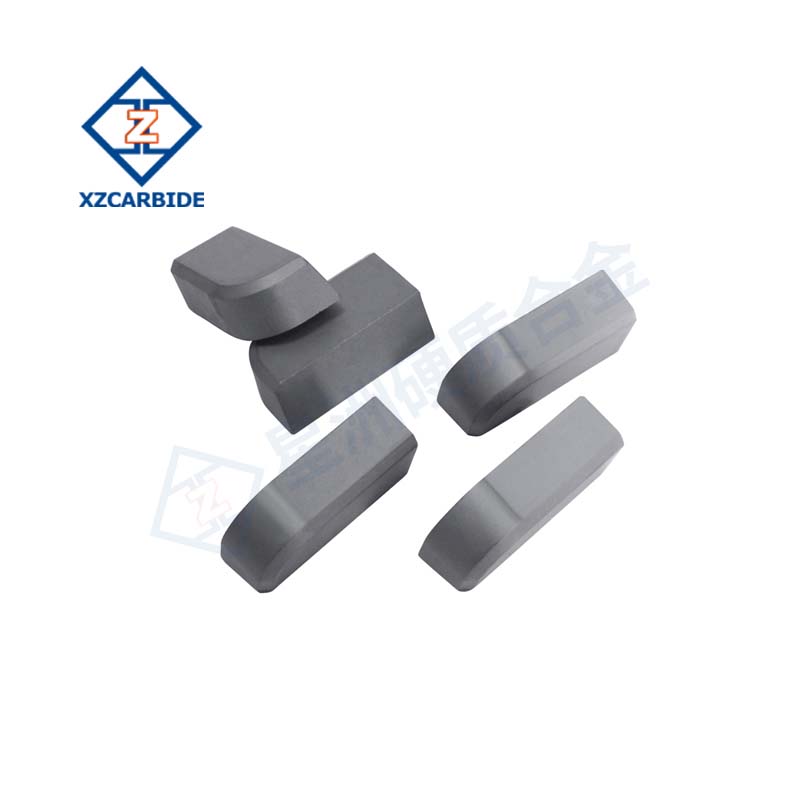

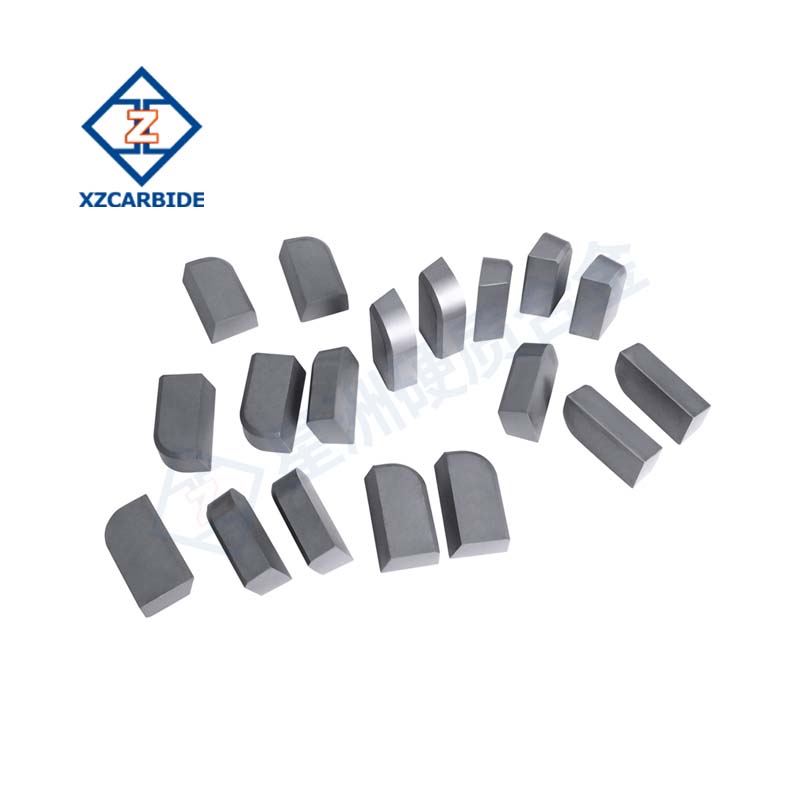

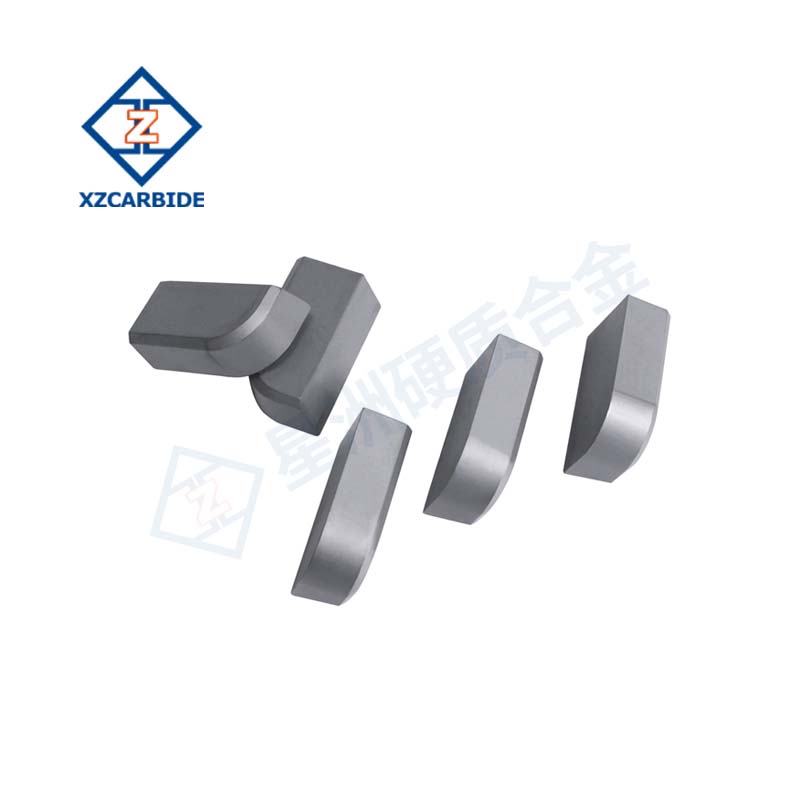

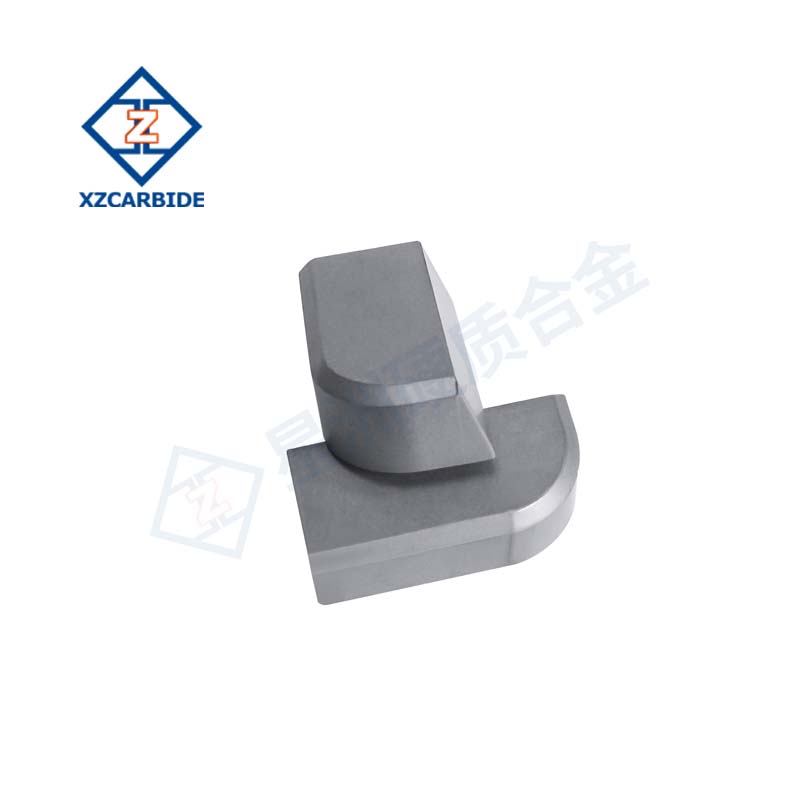

Tungsten Carbide Brazed Tips Tungsten carbide tip YG6 K10 brazed tip
Widely used in tool tips of various metal cutting tools, such as lathes, milling machines, drilling machines, etc. When cutting steel, cast iron, non-ferrous metals and other materials, tungsten carbide brazing tips can achieve high-precision and high-efficiency cutting, improving the surface quality and dimensional accuracy of processing.
Description
Widely used in tool tips of various metal cutting tools, such as lathes, milling machines, drilling machines, etc. When cutting steel, cast iron, non-ferrous metals and other materials, tungsten carbide brazing tips can achieve high-precision and high-efficiency cutting, improving the surface quality and dimensional accuracy of processing.
Specifications

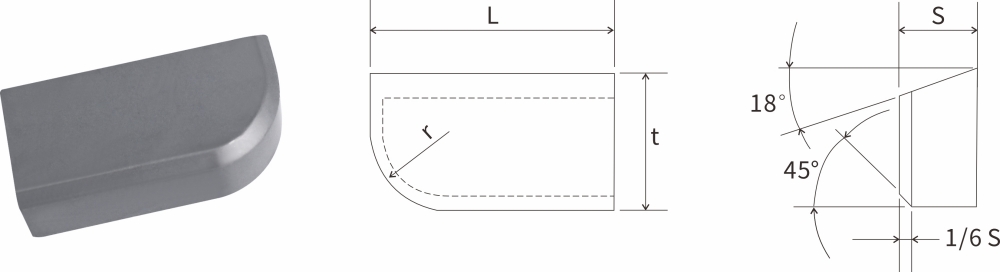

Types of Tungsten Carbide Brazed Tips Type A
| Type | Dimension (mm) | |||
| L | T | S | R | |
| A5 | 5.0 | 3.0 | 2.0 | 2.0 |
| A6 | 6.0 | 4.0 | 2.5 | 2.5 |
| A8 | 8.0 | 5.0 | 3.0 | 3.0 |
| A10 | 10.0 | 6.0 | 4.0 | 4.0 |
| A12 | 12.0 | 8.0 | 5.0 | 5.0 |
| A16 | 16.0 | 10.0 | 6.0 | 6.0 |
| A20 | 20.0 | 12.0 | 7.0 | 7.0 |
| A25 | 25.0 | 14.0 | 8.0 | 8.0 |
| A32 | 32.0 | 18.0 | 10.0 | 10.0 |
| A40 | 40.0 | 22.0 | 12.0 | 12.0 |
| A50 | 50.0 | 25.0 | 14.0 | 14.0 |
Product features of Tungsten Carbide Brazed Tips Type A
| Item | Tungsten Carbide Brazed Tips |
| Material | Tungsten carbide |
| Type | A5, A6, A8, A10, A12, A20, A25, A32, A40, A50 |
| Grade | P10, P20, P30, K10, K20, K30, M20, YG8, YG6, YG6X, YW1, YW2, YT5, YT15, etc. |
| Surface | blank |
| Application | For turning tool, threading tool, lathe tool |
| MOQ | 10pcs |
| Certificate | 9001:2015 |
| Delivery time | about 20-30 days |
Applications
Carbide drill bits can also be used in:
Mining: used to manufacture the tips of drill bits, pick teeth and other components of mining equipment. In the process of mining ores, when faced with hard rocks and ores, tungsten carbide brazing tips can effectively break rocks, improve mining efficiency, and reduce equipment losses.
Construction engineering: Some tools in construction, such as impact drill bits, steel bar cutting machine blades, etc., use tungsten carbide brazing tips to enhance the durability and cutting performance of the tools, and improve construction efficiency and quality.
Oil and gas extraction: During the oil drilling process, drill bits need to withstand harsh working conditions of high temperature, high pressure and high wear. Drill bits with tungsten carbide brazed tips can better adapt to these environments, improve drilling speed and drill bit service life.
All products accept customized services.
