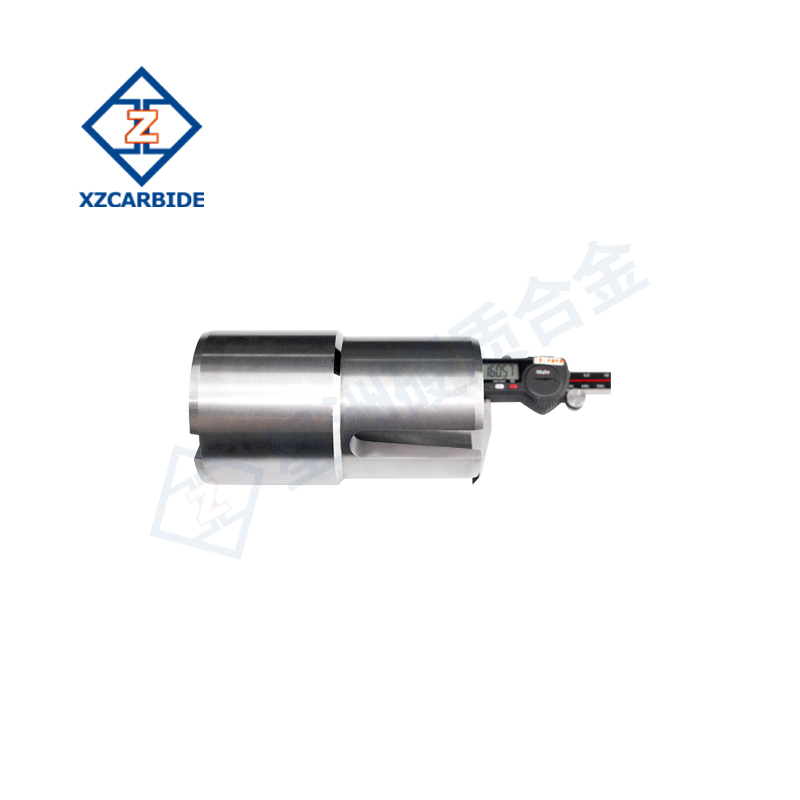

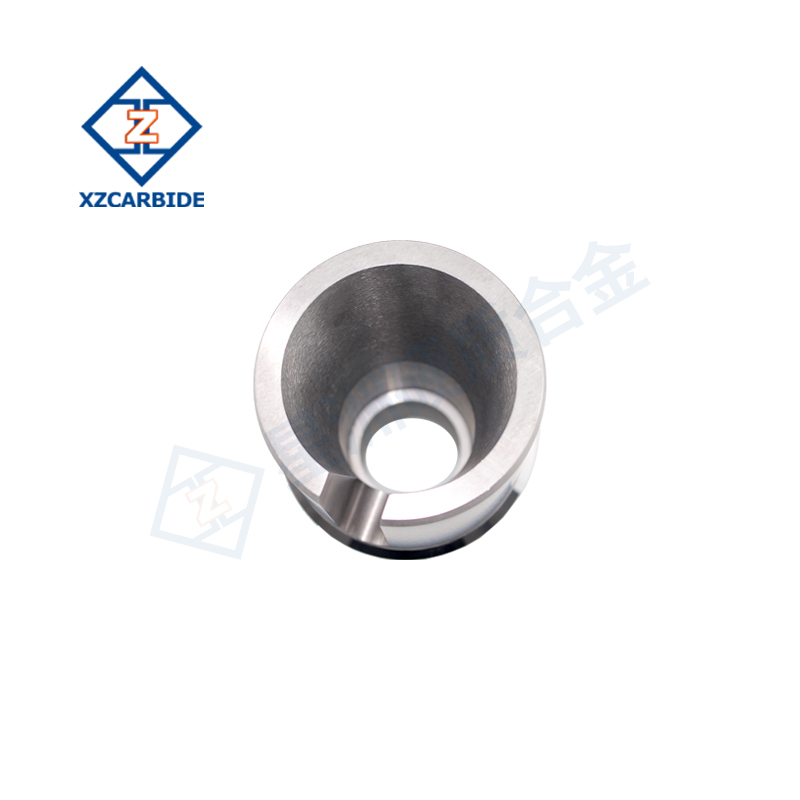

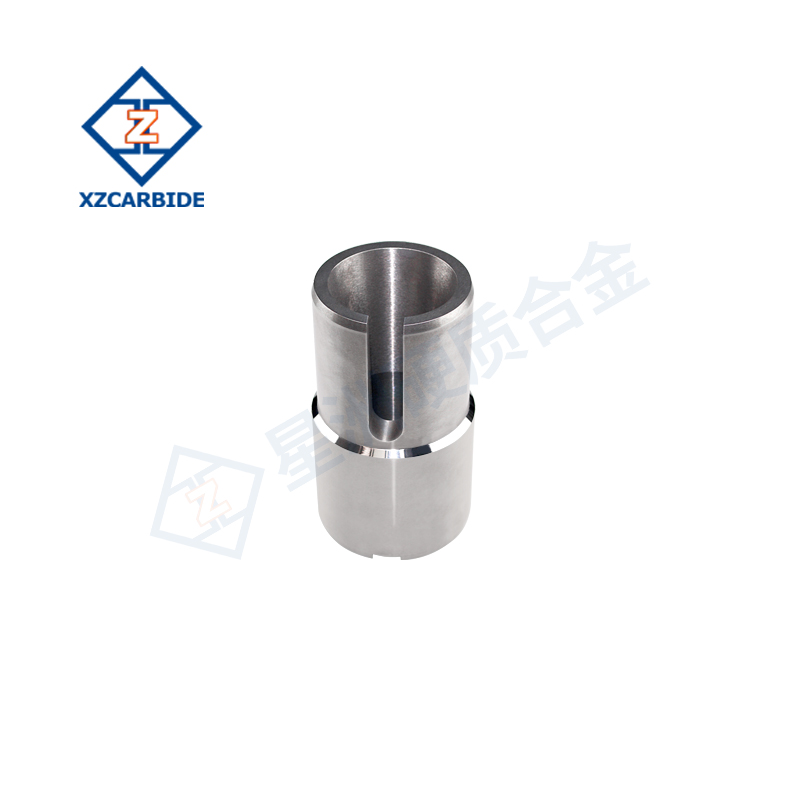

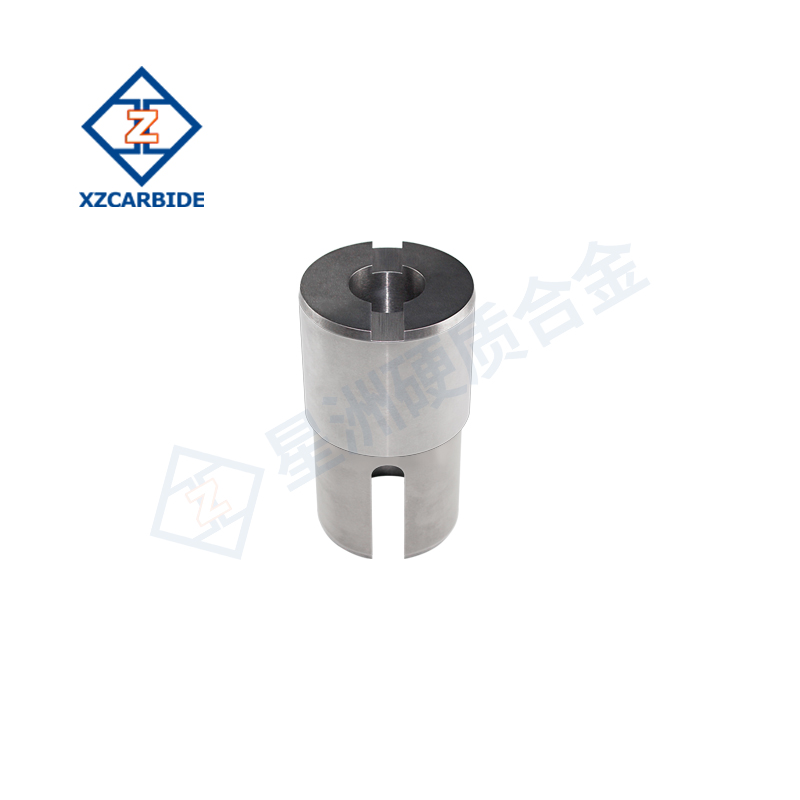

Bushing Spool for Enhanced Performance in Tough Environments
A high-performance component combining the functions of cemented carbide bushings and spools, mainly used in various valve systems in high-pressure, high-temperature and strong corrosive environments. Due to its excellent abrasion resistance and corrosion resistance, the cemented carbide bushing spool can significantly improve the service life of the valve, which is widely used in the fields of petroleum, natural gas, chemical industry, metallurgy and so on.
Description
Product Features
High abrasion resistance: Extremely high hardness and abrasion resistance, able to maintain its dimensional stability in long time and high pressure work.
Strong corrosion resistance: Good corrosion resistance, suitable for use in acid and alkali environments and fluids containing corrosive media.
High-temperature and high-pressure resistance: Able to withstand high-temperature and high-pressure environments, ensuring stable operation under harsh working conditions.
Superior sealing: The precision machined carbide spool and bushing are closely matched, which can provide excellent sealing performance and prevent leakage.
Customized design: Customized products with various specifications, shapes and surface treatments can be provided according to customers' needs to adapt to specific working conditions.
Precautions
1. Check the sealing performance of the bushing spool regularly and replace the aging parts in time when it is used in high temperature and high pressure environment.
2. Avoid impact and friction when installing and disassembling to prevent the surface damage from affecting the sealing effect.
3. Choose suitable lubricant and anti-corrosion measures according to the working environment to prolong the service life of the bushing spool.
Specifications
Product Parameters
| Material | Tungsten carbide |
| Hardness | HRA 90-94 |
| Density | 13.8-14.9 g/cm³ |
| Dimensions | Inside diameter: 10-100 mm Outside diameter: 20-150 mm Length: 10-200 mmUpon request |
| Corrosion Resistance | Suitable for multiple corrosive media, including acids, alkalis and salt solutions. |
Applications
Cemented carbide bushing spool is widely used in:
Oil and gas: Used for valve components in high-pressure pipelines and downhole tools, wear and corrosion resistant.
Chemical industry: Used in valves handling corrosive chemical media to ensure long-term stable operation.
Metallurgy: Used in valves in high-temperature furnace systems to withstand high temperatures and wear.
Power: In critical valve systems in nuclear and thermal power plants to provide reliable sealing and durability.
