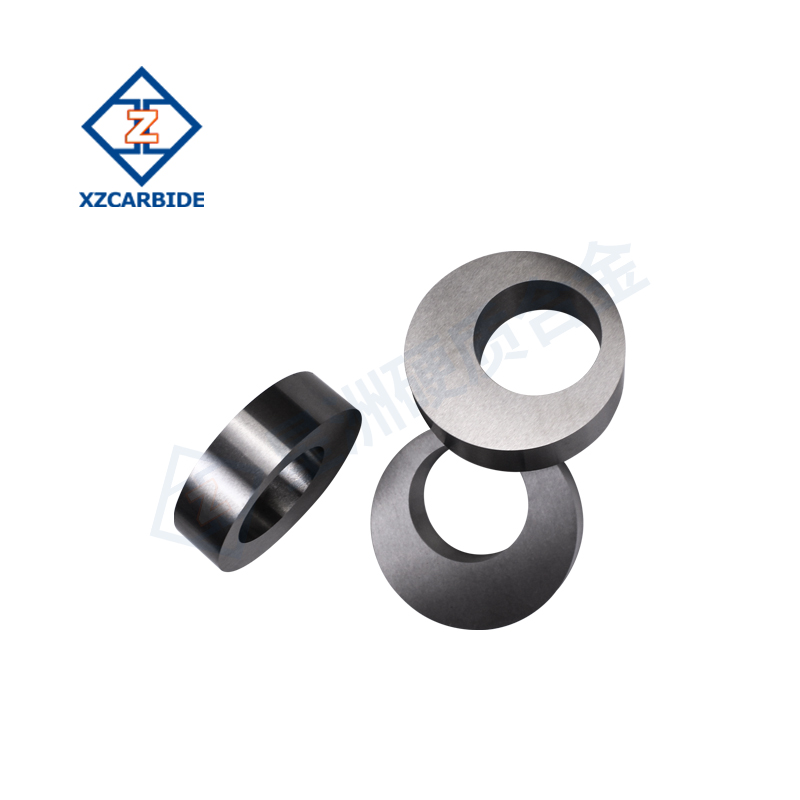

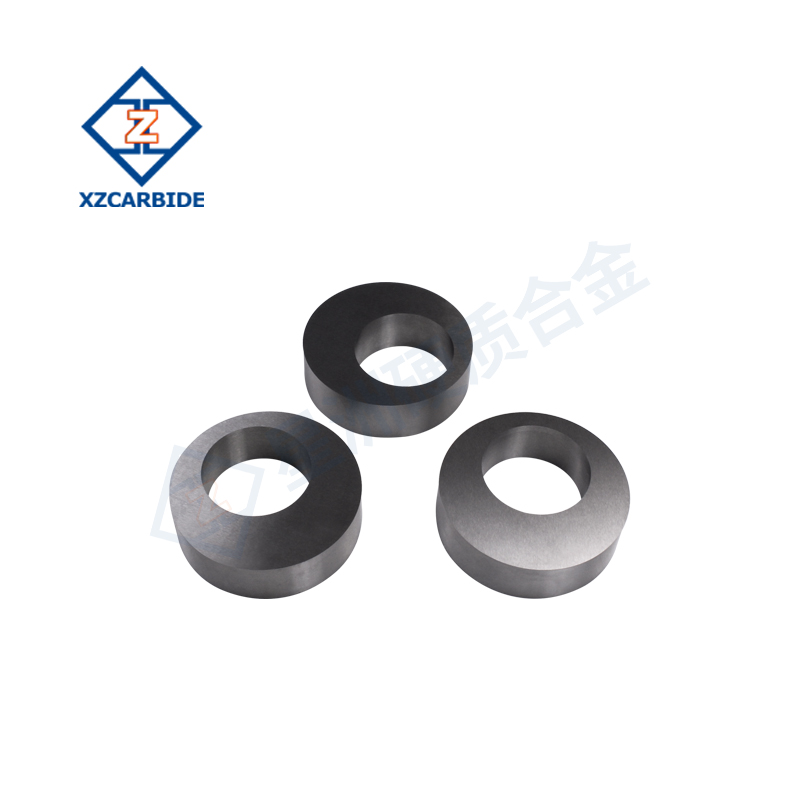

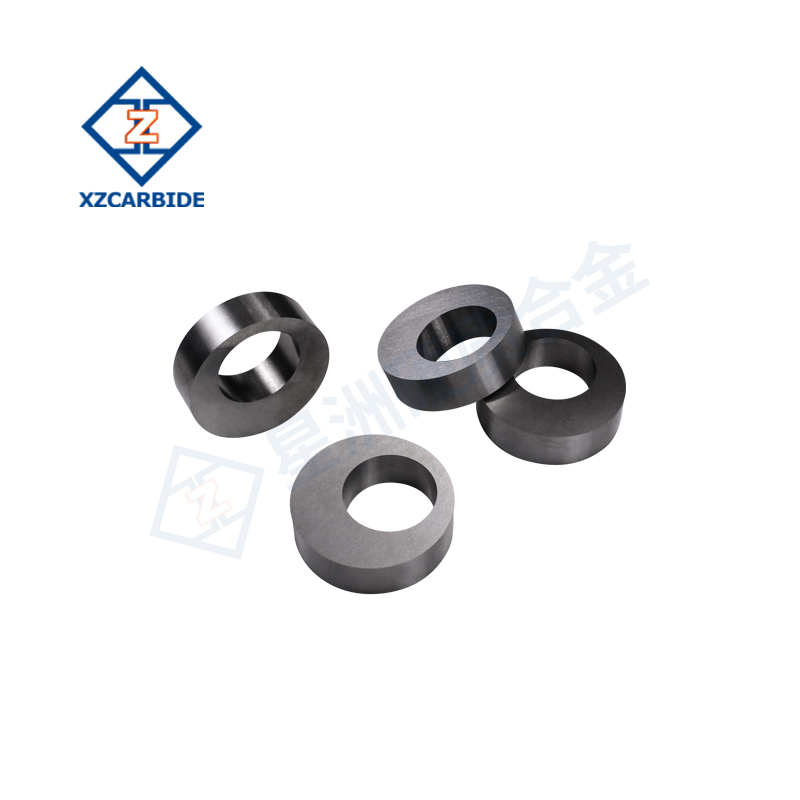

Custom Irregular Shaped Drawing Die for Complex and Precise Metal Shaping

Product Features

• Customized design: According to the customer's needs, we design and manufacture stretching molds to fit specific shapes to ensure the accuracy and consistency of the finished products.

• High precision: The molds are made with high precision machining process to ensure the consistency of size and surface finish of each workpiece.

• Strong durability: The material of the mold adopts high-quality alloy steel with high strength and good abrasion resistance, which is heat-treated to have a long service life.

• Convenient operation: The mold is reasonably designed, easy to install and replace, suitable for mass production.

Production Process

• Drawing design: Design the mold according to customer's demand, confirm the size and shape of the workpiece.

• Material preparation: Choose suitable mold steel, cutting and processing.

• Heat treatment: Quench and temper the mold to improve the hardness and wear resistance.

• Finishing: CNC machining and other high-precision equipment are used to ensure thedimensional accuracy of the mold.

• Surface treatment: Nitriding or PVD coating treatment is carried out to enhance the wear resistance of the mold surface.

• Quality inspection: The finished molds are strictly inspected for dimensions, hardness and other indicators to ensure product quality.

Automobile manufacturing: Used for manufacturing body, door, hood and other shaped parts.

• Home appliance manufacturing: Used to manufacture air-conditioning shell, washing machine panel and other complex shapes of metal parts.

• Aerospace: Used for processing airplane fuselage, wing beams and other parts that require special shapes.

• Other industries: Widely used in various industries that require metal molding, such as construction and hardware.
