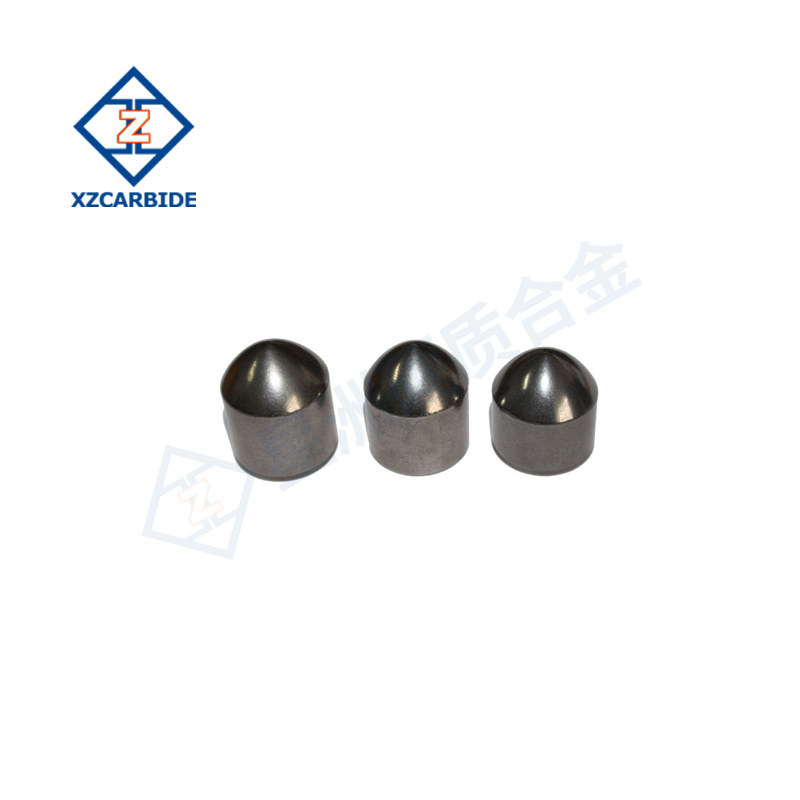

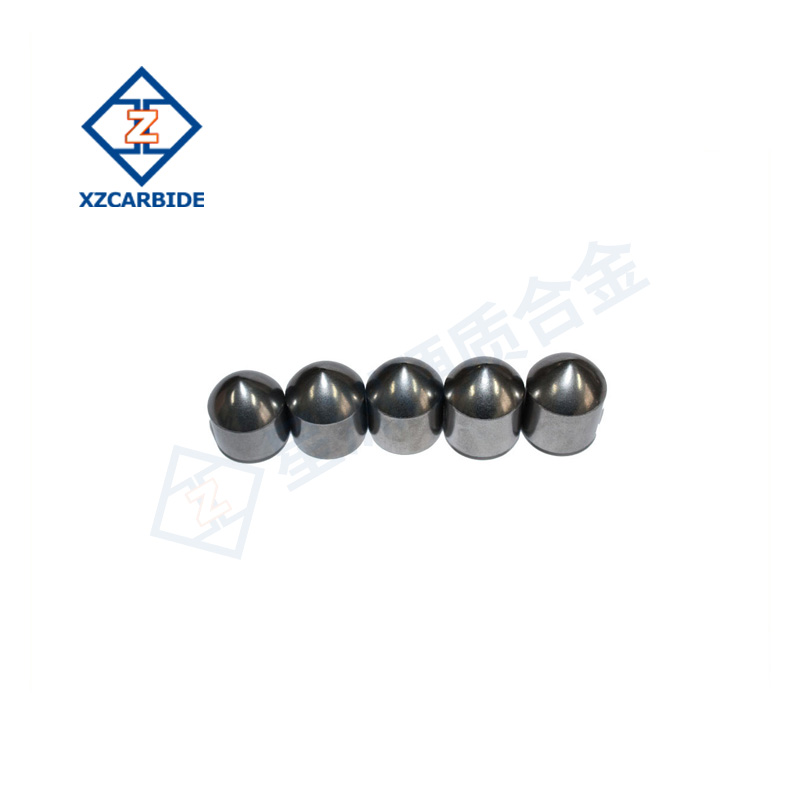

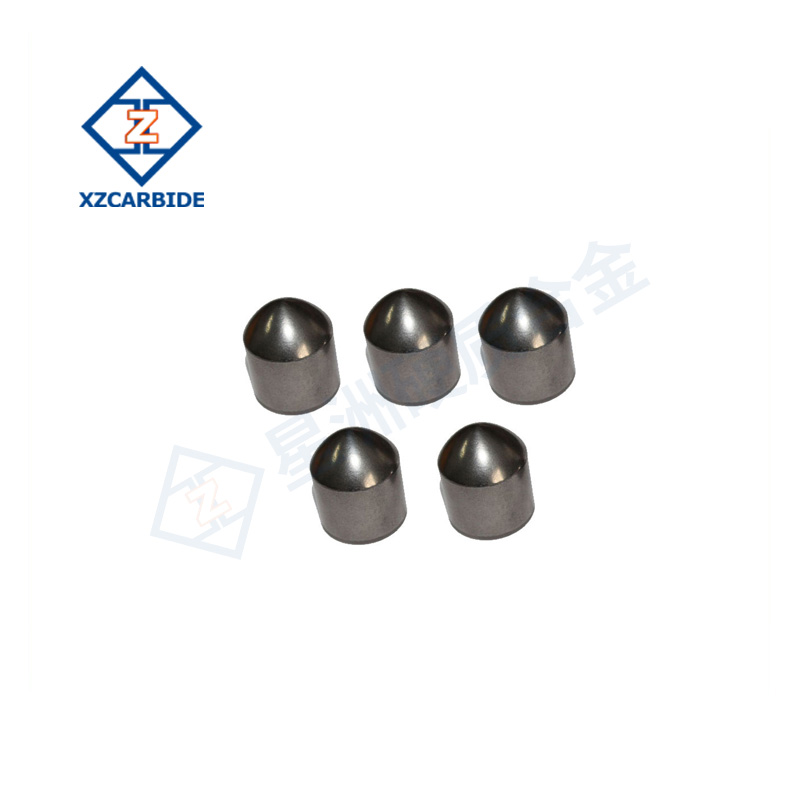

Mining Button Bit for Efficient Drilling and High-Performance Cutting
The button bit is designed to improve the efficiency of drilling and cutting tools and withstand high intensity impact and wear. It is an indispensable core component in drilling and cutting equipment and is widely used in mining, tunneling, construction engineering, oil drilling and other industries.
Description
Main Features
High hardness: The high hardness tungsten-cobalt alloy material has excellent anti-wear performance, which can maintain stable work for a long time under extreme working conditions.
Excellent impact resistance: The carbide button bit can withstand high-intensity impact and vibration, which is especially suitable for drilling and crushing of rocks, ores and other hard materials.
Various shapes and sizes: Various shapes and sizes of button bit are available, such as round, spherical, pointed, etc., adapting to different drilling equipments and working conditions.
Long service life: Through special treatment and manufacturing process, the carbide button bit has an extremely long service life, which reduces the replacement frequency and maintenance cost.
Specifications
| Spherical | Parabolic | ||||
| Diameter | Height | Radius | Diameter | Height | Crest Height |
| 8.2 | 12.0 | 4.2 | 7.2 | 11.0 | 3.9 |
| 9.2 | 13.0 | 4.6 | 8.2 | 12.0 | 4.3 |
| 10.2 | 14.0 | 5.2 | 9.2 | 13.0 | 5.0 |
| 11.2 | 15.0 | 6.0 | 10.2 | 15.0 | 5.2 |
| 12.2 | 17.0 | 6.6 | 11.2 | 16.0 | 5.8 |
| 13.2 | 19.0 | 6.7 | 12.3 | 17.0 | 6.7 |
| 14.3 | 22.0 | 7.2 | 13.3 | 18.0 | 6.8 |
| 16.3 | 24.0 | 8.8 | 14.3 | 20.0 | 7.3 |
| 18.3 | 27.0 | 9.2 | 16.3 | 24.0 | 8.4 |
| 19.2 | 25.0 | 9.6 | 18.3 | 27.0 | 10.5 |
Support customization
Applications
Carbide button bit is widely used in the following fields:
Mining: Used as the core part of drills and crushers for drilling, crushing and extraction of ores.
Tunnel Boring: Used in the cutter head section of tunnel boring machines to efficiently cut through hard rock and other geological materials.
Oil drilling: Carbide tipped button bits are used in oil and gas drilling to improve drilling efficiency and extend bit life.
Construction: In the process of foundation treatment and rock crushing in construction, button bits are used in various drilling and cutting tools.
