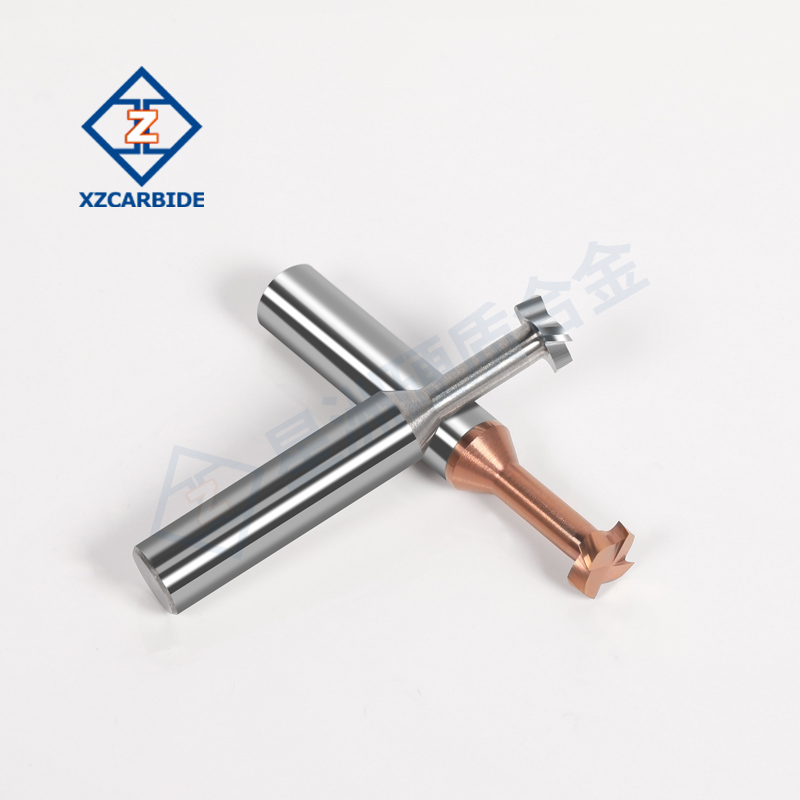

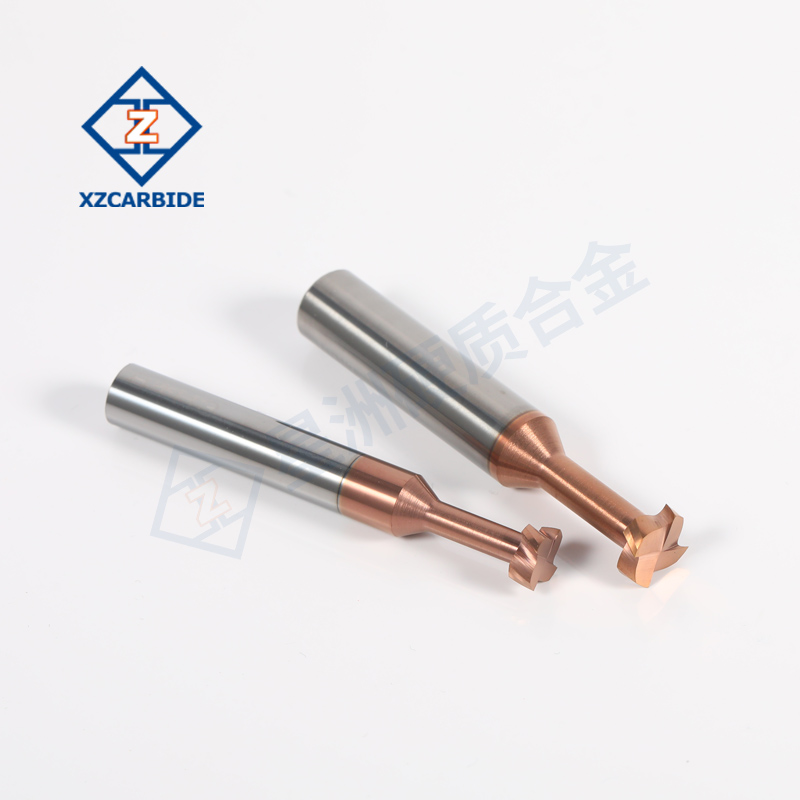

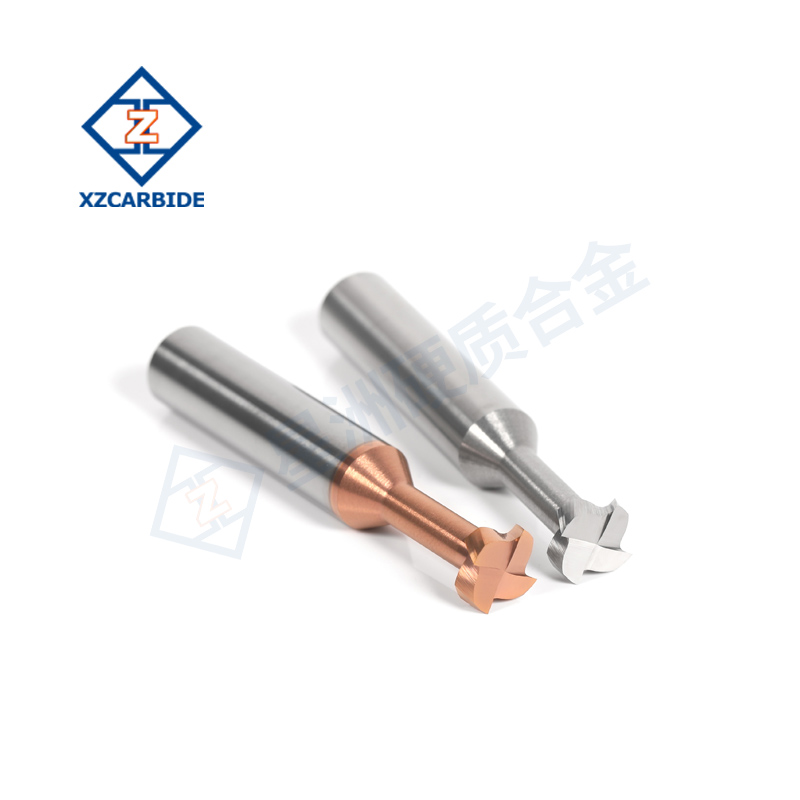

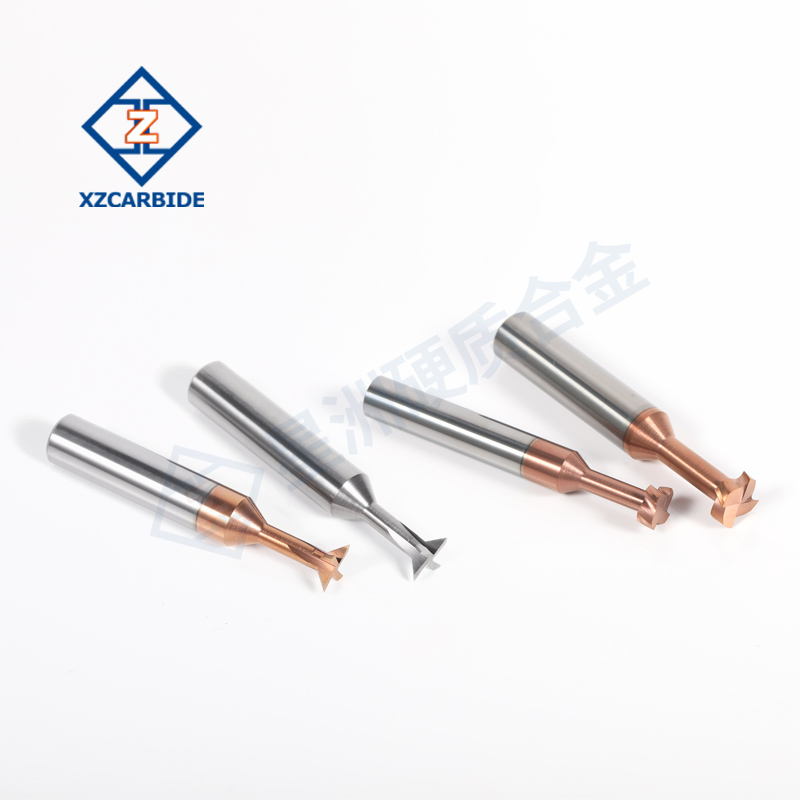

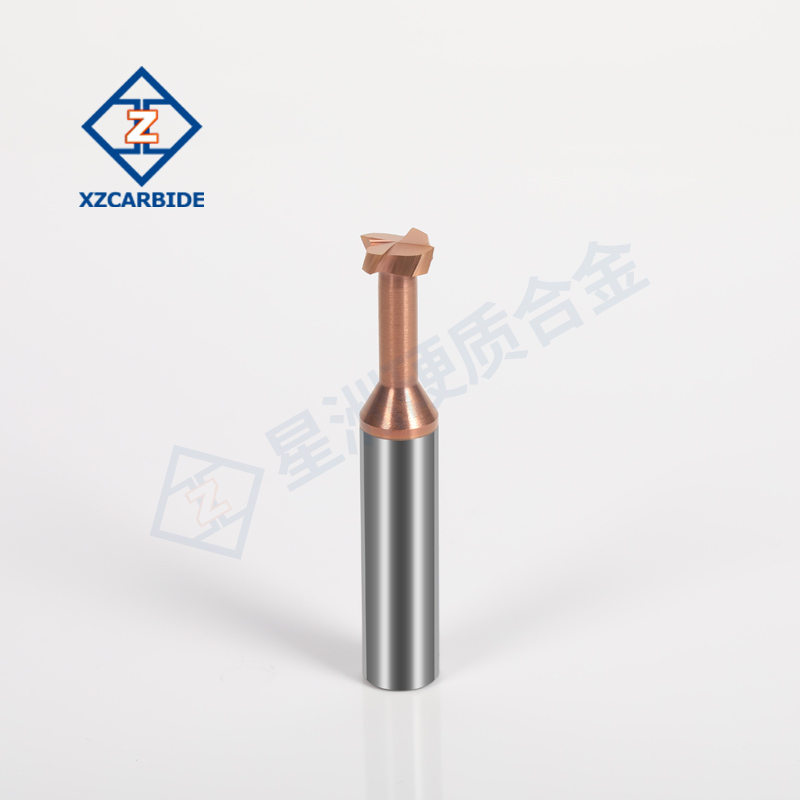

Factory Sales T-Shaped/Dovetail End Mill
Used for processing T-slots and dovetail slots.
Applied in machinery manufacturing, mold processing, fixture manufacturing and other fields.

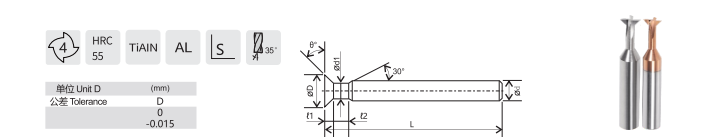

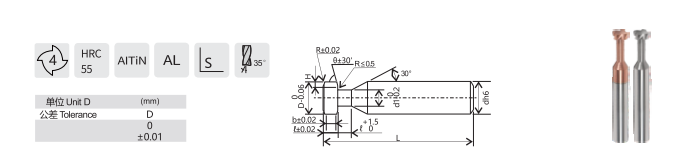

Specifications
| 单位Unit:mm | |||||
| Model | Diameter D | Blade Thickness L | Shank D2 | Overall Length L2 | |
| Standard | XZ-T-4F-030050450 | 3 | 0.5/1/1.5/2 | 3 | 50 |
| XZ-T-4F-040050450 | 4 | 0.5/1/1.5/2 | 4 | 50 | |
| XZ-T-4F-060050650 | 6 | 0.5/1/1.5/2/2.5/3 | 6 | 50 | |
| XZ-T-4F-080050850 | 8 | 0.5/1/1.5/2/2.5/3 | 8 | 50 | |
| XZ-T-4F-10011060 | 10 | 1/1.5/2/2.5/3/4/5 | 10 | 60 | |
| XZ-T-4F-12041260 | 12 | 1/1.5/2/2.5/3/4/5 | 12 | 60 | |
| XZ-T-4F-14011475 | 14 | 1/1.5/2/2.5/3/4/5 | 14 | 75 | |
| XZ-T-4F-16011675 | 16 | 1/1.5/2/2.5/3/4/5 | 16 | 75 | |
| Or customized | |||||
| 单位Unit:mm | |||||
| Model | Diameter D | Angle | Shank D2 | Overall Length L2 | |
| Standard | XZ-D-4F-01300450 | 1 | 30° | 4 | 50 |
| XZ-D-4F-015300450 | 1.5 | 30° | 4 | 50 | |
| XZ-D-4F-02300450 | 2 | 30° | 4 | 50 | |
| XZ-D-4F-025302450 | 2.5 | 30° | 4 | 50 | |
| XZ-D-4F-03300450 | 3 | 30° | 4 | 50 | |
| XZ-D-4F-04300450 | 4 | 30° | 4 | 50 | |
| XZ-D-4F-06300350 | 6 | 30° | 6 | 50 | |
| XZ-D-4F-08300860 | 8 | 30° | 8 | 60 | |
| XZ-D-4F-10301075 | 10 | 30° | 10 | 75 | |
| XZ-D-4F-01450450 | 1 | 45° | 4 | 50 | |
| XZ-D-4F-015450450 | 1.5 | 45° | 4 | 50 | |
| XZ-D-4F-02450450 | 2 | 45° | 4 | 50 | |
| XZ-D-4F-025450450 | 2.5 | 45° | 4 | 50 | |
| XZ-D-4F-03450450 | 3 | 45° | 4 | 50 | |
| XZ-D-4F-04450450 | 4 | 45° | 4 | 50 | |
| XZ-D-4F-06450650 | 6 | 45° | 6 | 50 | |
| XZ-D-4F-08450860 | 8 | 45° | 8 | 60 | |
| XZ-D-4F-10451075 | 10 | 45° | 10 | 75 | |
| Or customized | |||||
Applications
Located in Zhuzhou High-tech Industrial Development Zone, Zhuzhou Xingzhou Carbide Co., Ltd. is a high-tech joint-stock enterprise specializing in the research and development, production and sales of cemented carbide products. We have more than 20 years of experience in manufacturing industrial tools.
Why Choose us?
We can supply various types of cemented carbide cutting tools and spare parts for electric tools, such as tungsten carbide composite rods, tungsten carbide plate and strip, carbide wear parts, carbide rollers, CNC cutters, endmills, circular saw blades, saw tips, custom tungsten carbide products and DTH drill bits and hammer etc.used for mining, road and bridge construction, oil etc.

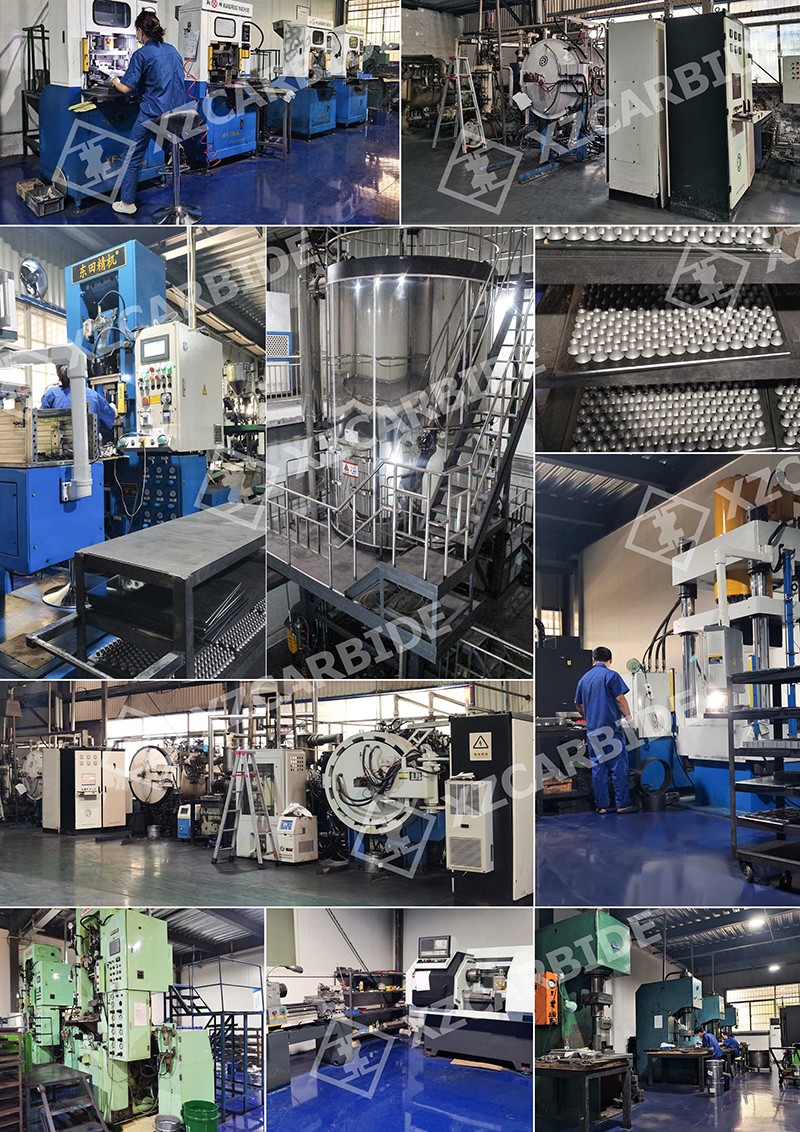

Our company has in the word advanced production equipment such as pressure sintering furnace, isostatic cool pressing, actomatic pressing machines, subsequent inner stress relieving processing system , complete quality control and check -out equipment and so on.Our products are widely sold all over the world for their high quality and competitive prices. Most ofour products had been exported to America, Europe, Middle East and Southeast Asia markets.We believe that the cooperation with Zhuzhou Xingzhou Carbide Co., Ltd. should be you best choice.
FAQ
1.Are you a manufacturer or a trade company?
We are a manufacturer of rock drilling tools and tungsten carbide products in China over 20 years.
2.Where is your company?
We are located in Chinese largest production base of tungsten carbide, Zhuzhou city, Hunan province. Half an hour by car from Changsha airport, two and a half hours by CHR express from Guangzhou station to Zhuzhou city.
3.Why choose XZcarbide?
1)We have more than 20 years of researching, developing, manufacturing and exporting high quality rock drilling tools and tungsten carbide products to the global market.
2)High quality.
3)Competitive price.
4)Excellent customer service.
4.Which port do you shipping from?
We usually ship container from changsha port .
5.What is your minimum order quantity?
Our MOQ are 1pc or 1 set, the price may rely on the order quantity.
6.What is your payment term?
We accept T/T.
7. How about the delivery time?
For general products, we have in stocks.
For others, it depends on the quantity, generally it takes about 15-25workdays.
8. Can I visit your factory?
Warmly welcome to our factory.
